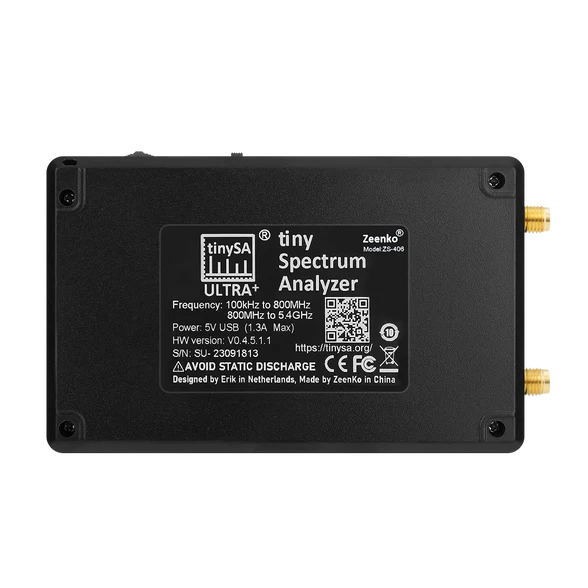

TinySA Ultra+
Fraud Prevention: Your Payment is Safe & Secure.
Introduction
Spectrum Analysis Made Simple
A spectrum analyzer lets you visually monitor radio signals in real time. For pentesters working with RF, remote controls, or IoT devices, it’s an essential tool for quickly pinpointing a target device’s operating frequency—whether it’s 30 MHz, 433 MHz, 866 MHz, or anything in between—so you can plan and execute the appropriate testing workflow.
Powerful & Portable
The TinySA is a compact, budget-friendly spectrum analyzer that covers 100 kHz to 960 MHz. Its built-in touchscreen is perfect for field use, while desktop connectivity allows you to unlock expanded features when connected to your workstation.
Built-In Signal Generator
The TinySA comes equipped with an internal signal generator capable of producing sine and square waves from 0.1 MHz to 950 MHz—ideal for testing, calibration, or close-range roll-jam-style experiments.
Open-Source Design
As an open-source device, the TinySA has multiple variants on the market. We carry the TinySA Ultra Plus, the latest and most capable CE-compliant model, offering the best performance and stability among the TinySA lineup.
Functionality at a glance
Simple
Observe radio signals visually in real-time
Portable
Pocket-sized with internal battery & touch-screen.
Powerful
Desktop & mobile apps provide extra functionality.

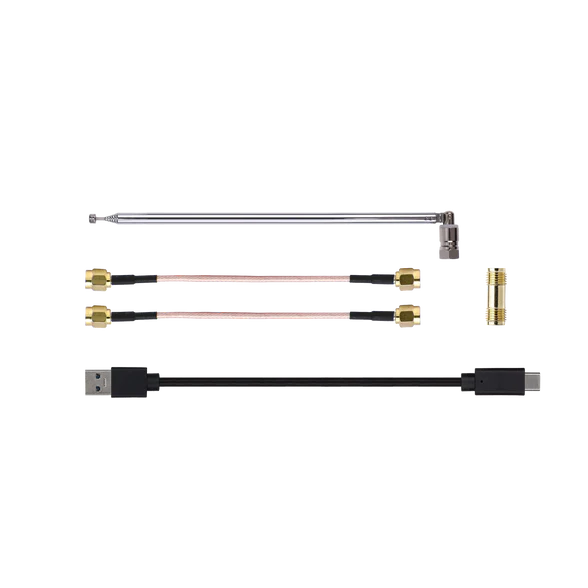

What's included
- 1x TinySA Ultra+
- 1x Telescopic SMA Antenna
- 1x Female-Female SMA through connector
- 2x SMA Male-Male extension cables
- 1x USB-A to USB-C Cable
Device Specifications
- Frequency Range: 100kHz - 900MHz, 5.4GHz in Ultra mode, 10GHz in Harmonic Mode
- Bandpass Filters: 2.6KHz - 640KHz
- Inbuilt Attenuator: -31dB > 0dB
- Resolution: 200kHz to 850KHz
- Display Points Per Scan: up to 450
- Signal Generator:Sine: 0.1MHz - 350MHzSquare: 250MHz - 960MHz
- Calibration: Automatic
- Display: 4" Touchscreen 480x320 TFT
- Dimensions: 117mm x 72mm x 22mm
- Connectivity: USB-C
