SA6 6GHz Portable Spectrum Analyzer

Introduction

The SA6 Spectrum Analyzer is a compact, portable, and powerful tool designed for engineers, repair workshops, and radio enthusiasts. Featuring a 3.2-inch full-color HD touchscreen, it delivers a clear view of test parameters with intuitive operation via touch or buttons.

Equipped with a built-in tracking generator, the SA6 can measure the frequency response of passive or active devices such as filters and amplifiers. With external directional couplers, it also supports SWR and return loss measurements, making it versatile for RF testing needs.

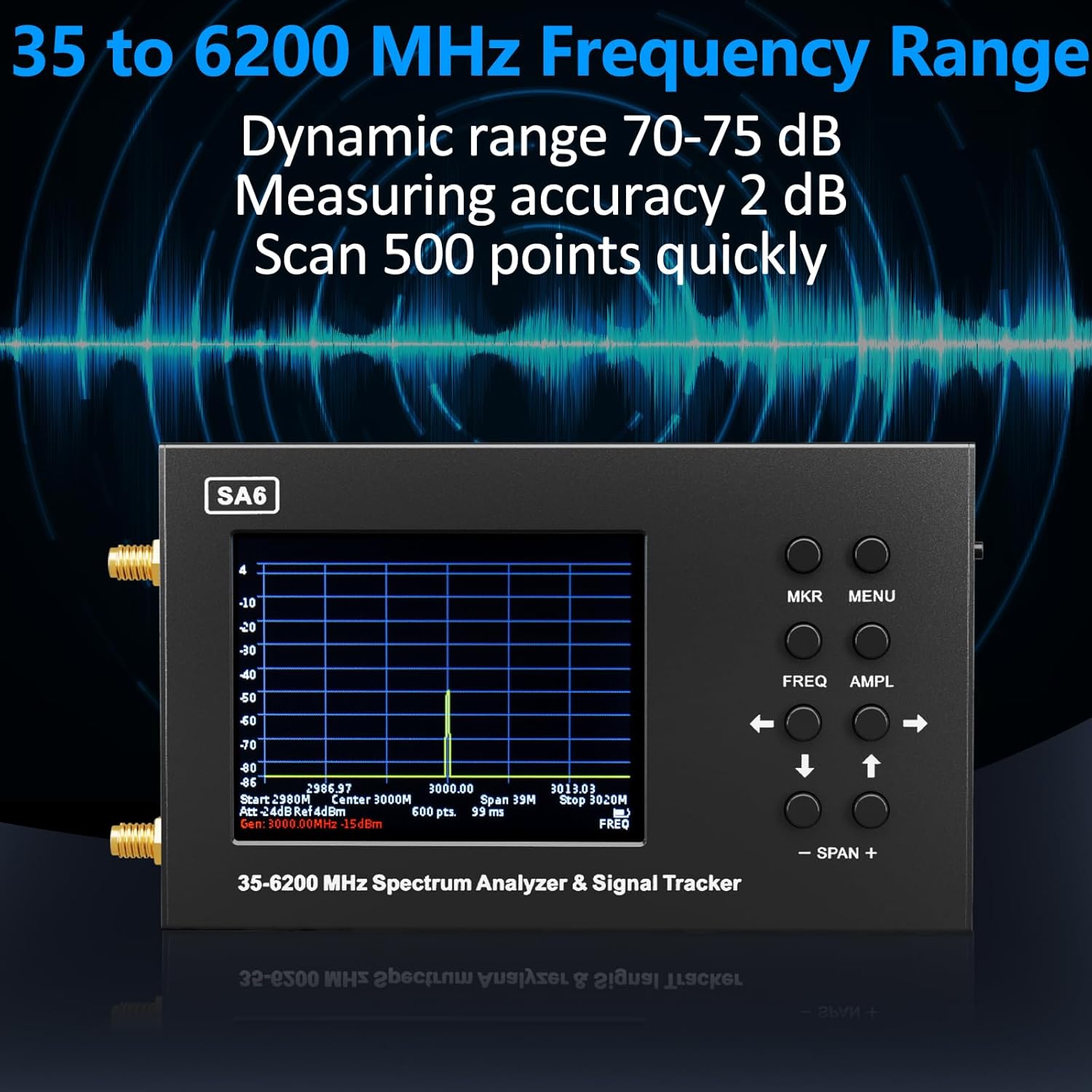

The analyzer offers a wide frequency range of 35–6200 MHz with a dynamic range of 70–75 dB and measurement accuracy within 2 dB. It can quickly scan 500 points per sweep, ensuring fast and precise signal analysis.

Data transmission is supported via USB connection to a PC, allowing real-time analysis, recording, and extended testing capabilities.

Its 5000mAh large-capacity battery ensures long operation time without worrying about frequent charging. Lightweight and durable, the SA6 is perfect for field operations, HF analysis, commissioning, and maintenance work.

With support for a wide range of signals including Wi-Fi, 2G, 3G, 4G, LTE, GSM, GPRS, CDMA, DCS, and GLONASS, the SA6 is a reliable companion for both professionals and hobbyists.

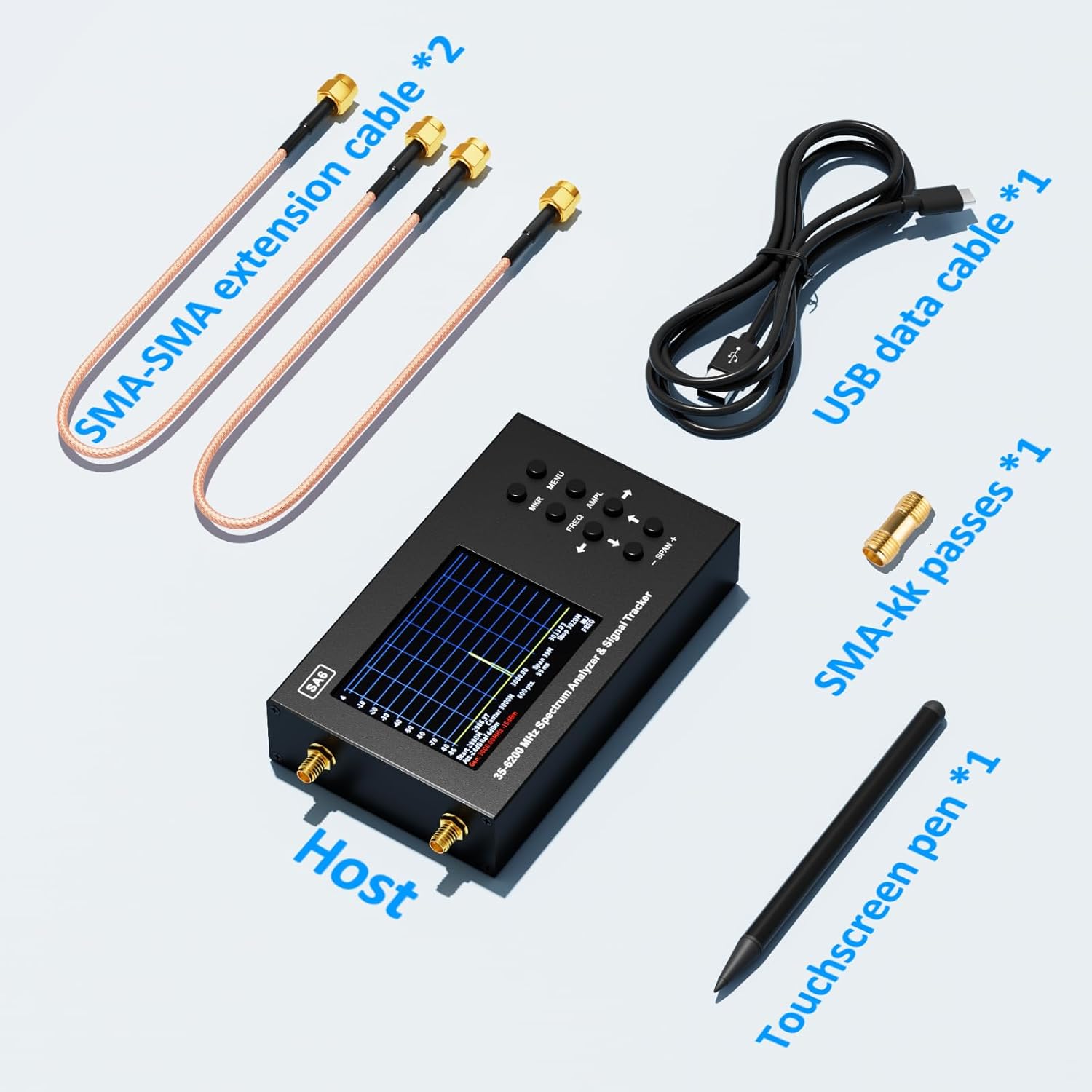

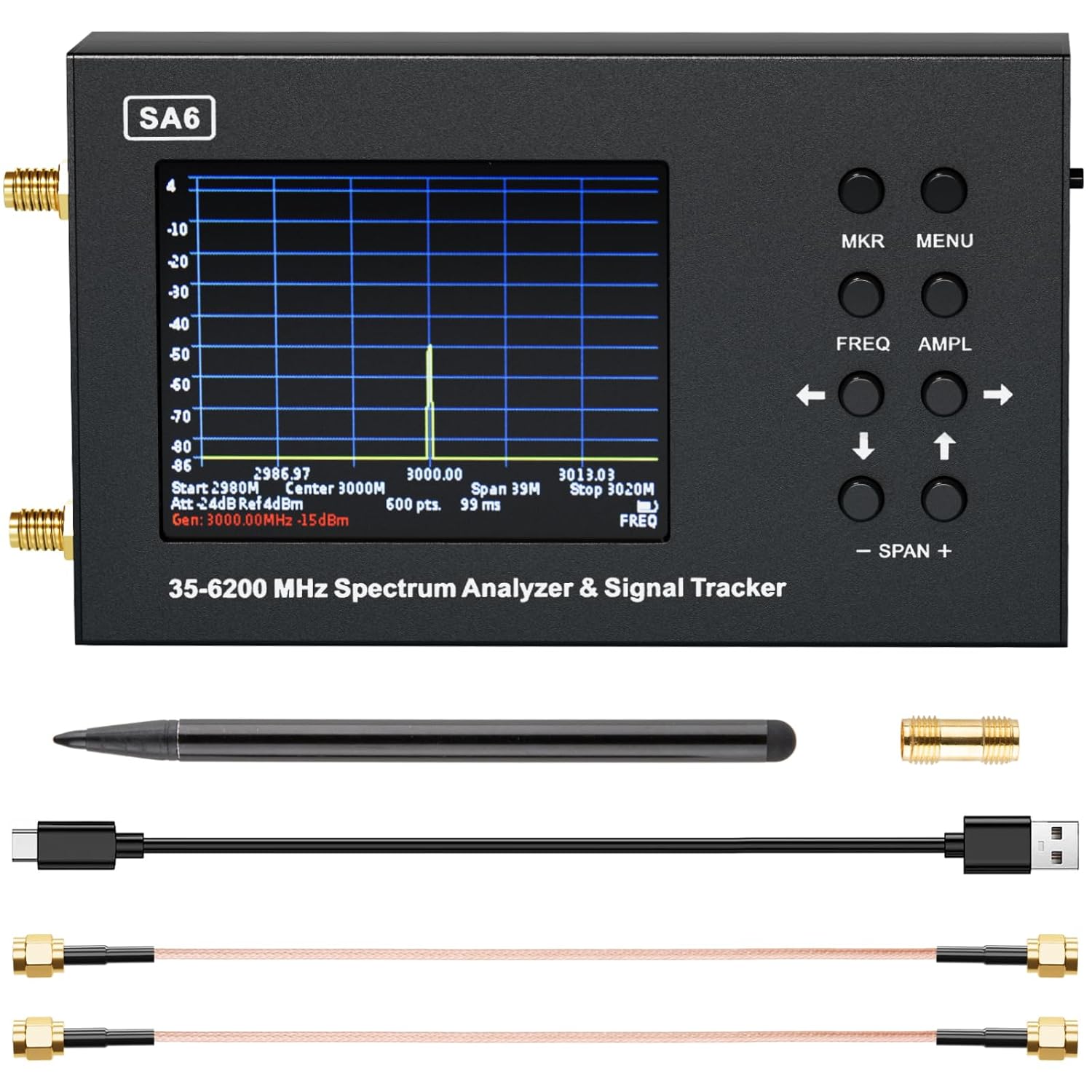

What's included

• 1 × SA6 Spectrum Analyzer
• 2 × SMA-SMA 30cm Extension Cables
• 1 × Type-C USB Data Cable (10cm)
• 1 × Stylus
• 1 × SMA-K Adapter

Device Specifications

• Display: 3.2-inch full-color HD touchscreen
• Battery: 5000mAh rechargeable lithium battery

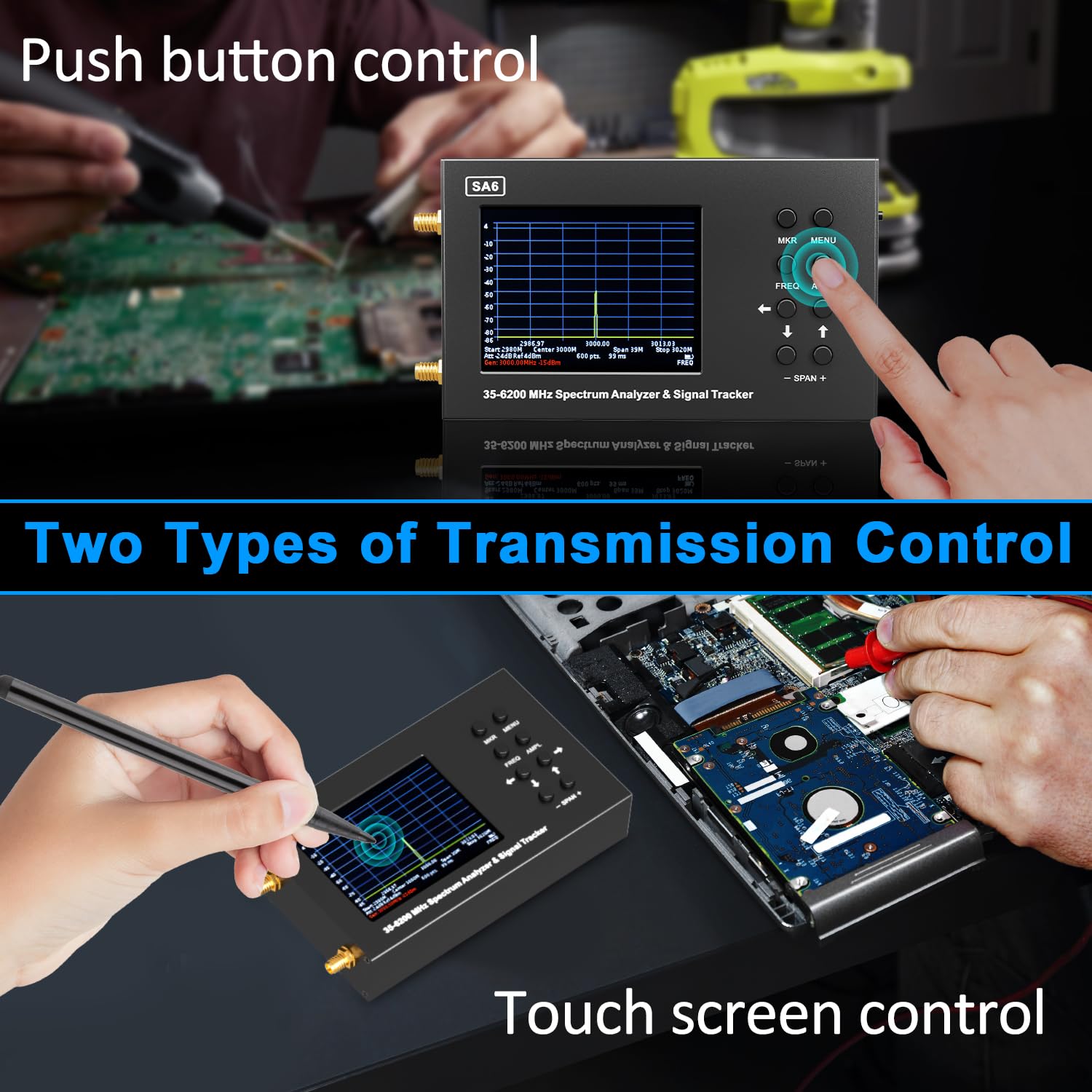

• Control: Touchscreen & button dual-operation
• PC Connectivity: USB data cable (real-time transmission & analysis)
• Size: 8.07 × 4.72 × 1.57 inches
• Weight: 1.08 lbs

Performance Specifications

• Frequency Range: 35–6200 MHz
• Sweep Speed: 500 points per scan
  Dynamic Range: 70–75 dB
• Accuracy: ±2 dB
• Built-in Tracking Generator: Yes
• SWR & Return Loss Measurement: Supported (with external couplers)
