Introduction

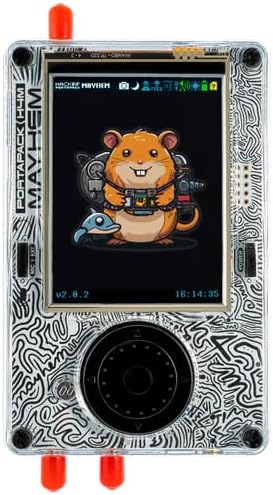

The PortaPack H4M+ HackRF is a high-precision, open-source hardware platform engineered for sophisticated radio frequency analysis and development. By integrating a 3.2-inch matte touchscreen interface with optimized Mayhem firmware, this unit transforms the traditional SDR hardware architecture into a fully autonomous, field-ready instrument. It is designed for researchers, engineers, and developers requiring a versatile, high-sensitivity tool across a wide 1MHz to 6GHz spectrum.
Engineering Highlights
- Standalone Operation: Built-in 3.2” touchscreen interface allows for complete signal analysis and data visualization without the overhead of external computer tethering.
- Hardware Precision: Built on the HackRF hardware revision with high-quality gold-plated circuitry for superior signal integrity and reduced environmental noise.
- Ready-to-Deploy Kit: A comprehensive development ecosystem including a high-gain 20dB LNA, a multi-antenna array for 1MHz–6GHz coverage, and a protective, field-durable enclosure.
- Advanced Utility Suite: Pre-configured for real-time applications.
NEW FEATURES:
- Added GPIO Port. For add-ons, extensions, and potential mods. This hasn't been in any previous version.
- Added Power Button. Turn on/off. It helps protect battery from phantom drain.
- 3.2 Inch Matte LCD Touch Screen. Direct app interaction and visual interface.
- A ratory encoder with push button. It helps navigate menus and adjust settings.
- Improved charge speeds.
NOTE: This product is an open-source development platform intended strictly for educational, learning, and authorized cybersecurity research purposes only. Please ensure all usage complies with local laws and regulations.
The H4M Advantages
The PortaPack H4M is the first fully integrated, all-in-one solution in the PortaPack series. Unlike earlier models, which faced challenges with usability, power efficiency, and overall performance, the H4M brings several improvements. It features a redesigned architecture that offers enhanced functionality, as well as the latest version of HackRF hardware and firmware—Rev 10.
1. Matte Screen
The upgraded matte-finish screen offers high visibility, ensuring clear readability even in bright outdoor conditions.
2. GPIO Ports
The addition of the GPIO port enables the connection of add-on accessories, shields, and sensors.
3. Redesigned Power System
The power system has been completely revamped to include:
- Unified Power On/Off Switch
- New Advanced battery management architecture
- Fast Charging via USB-C
- No power leakage or battery drain
4. Internal / External Mic + Speaker Toggle
The built-in sliding switch enables quick switching between the internal and external microphone/headphone inputs.
5. Redesigned navigation wheel
The new low-profile navigation wheel, combined with directional buttons, enables quicker navigation while minimizing the risk of damage when the device is not in use.
6. Integrated Microphone
The newly integrated on-board microphone enables the H4M to function as a complete voice transceiver.

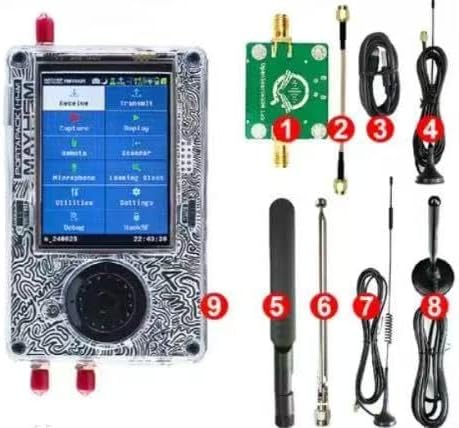

What's Included
- 1x PortaPack H4M (HackRF Rev10 + PortaPack H4M)
- 1x SMA Male/Male Cable
- 1x 8dBi 2.4/5/5.8GHz Blade Antenna
- 1x 40MHz - 6GHz Telescopic Antenna
- 1x 35dBi 700MHz - 2700MHz Antenna
- 1x 20dB 50MHz - 6GHz LNA
- 1x 5dBi 40MHz - 860 MHz Antenna
- 1 x 12dBi 700 MHz - 2700 MHz Antenna
- 1x MicroUSB Cable
And a portable bag comes with the package!
Functionality at a glance
Signal Capture
Easily perform raw signal capture - for instant replay, or for offline demodulation, analysis and modification.
Signal Replay
Oranised and Replay raw signals - directly after capture, or from the SD card or from otther sources.
Signal Detection
Detect and identify the frequency of nearby transmission sources. Useful for reconaissance and identifcation.
Frequency Scanner
Constantly scan a configurable range of frequencies to consecutively or in parallel..
In-built Apps
Dozens of inbuilt applications, such as real-time ADBS scanner, GPS-Simulator, TPMS decoders.. and more
Signal Generator
Generate customised signals - and even spectrum outputs - for device configuration & testing or even fuzzing.
Custom Apps
Open-source hardware and software and an active community - with support for custom applications.
HackRF Mode
Naturally - you still have direct access to the HackRF - with full support for all common SDR tools - GNU Radio etc.
Device Specifications
- Screen: 3.2 Inch 240x320 LCD Touch Screen
- Tactile Controls: Arrow Keys, Rotary Wheel, Select Buttons
- Headphone / Mic Socket: 3.5mm headphone / microphone jack
- Internal Coin Battery: Coin battery for RTC & Settings storage
- MicroSD Card Slot: For data import / export
- Case: Transluscent ABS
