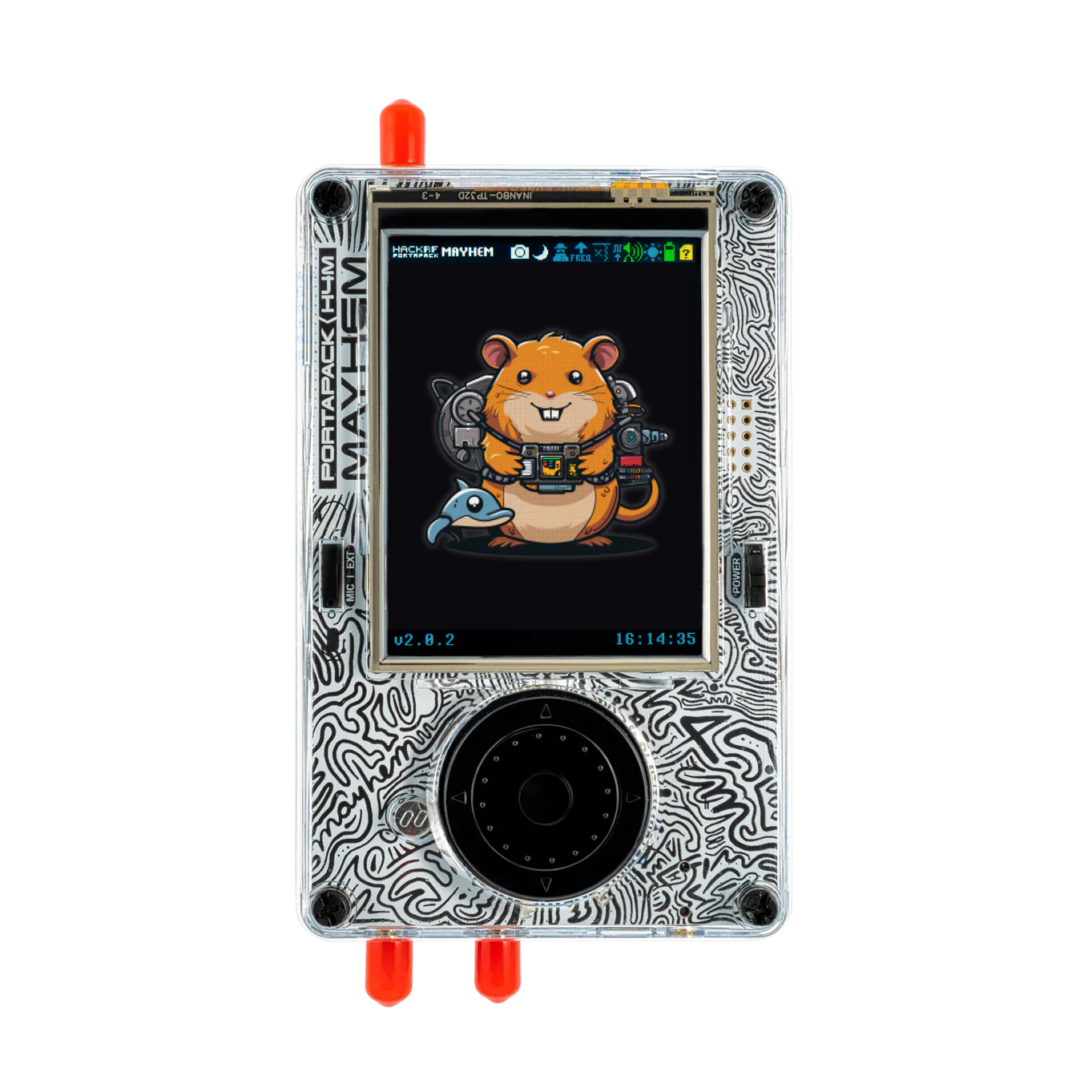

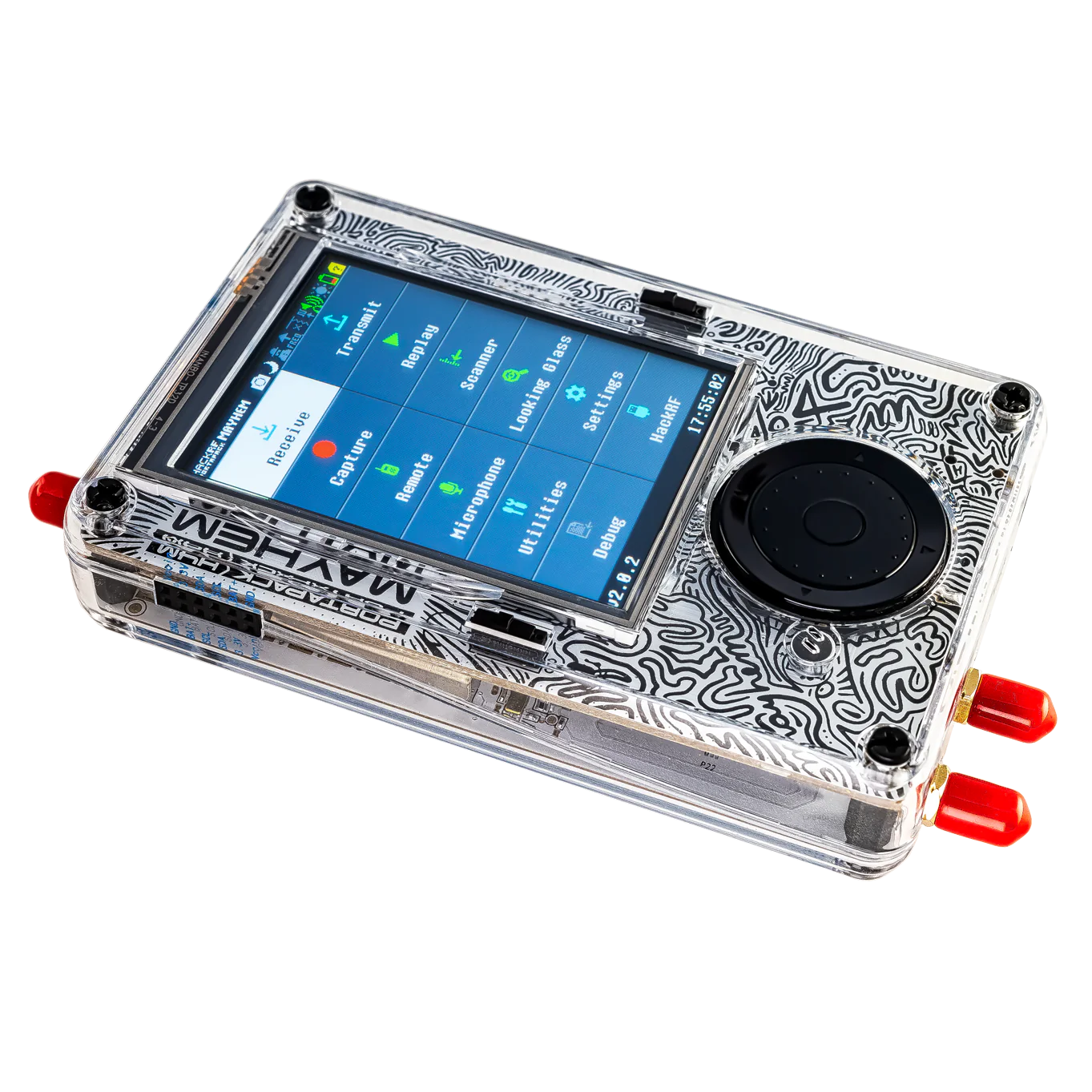

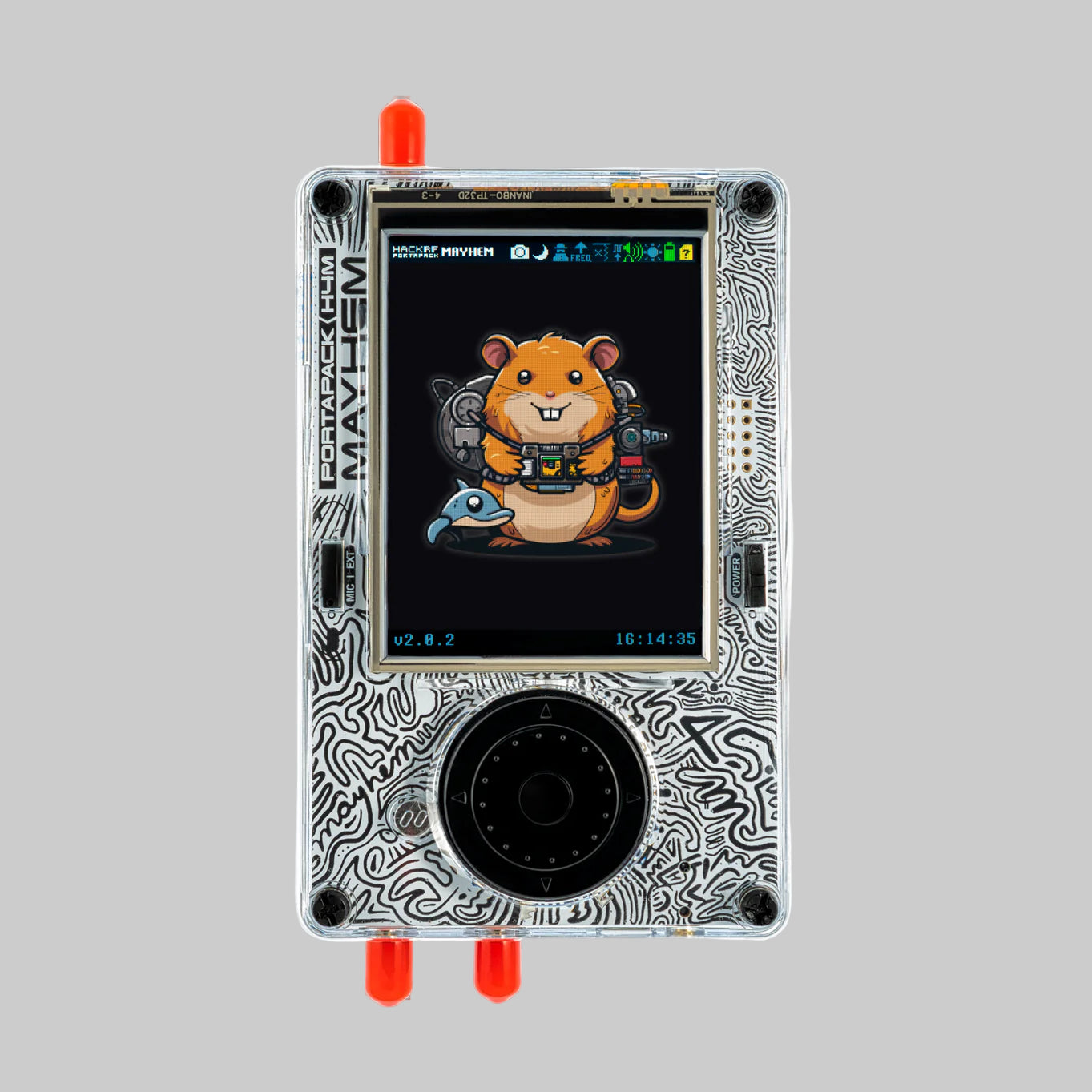

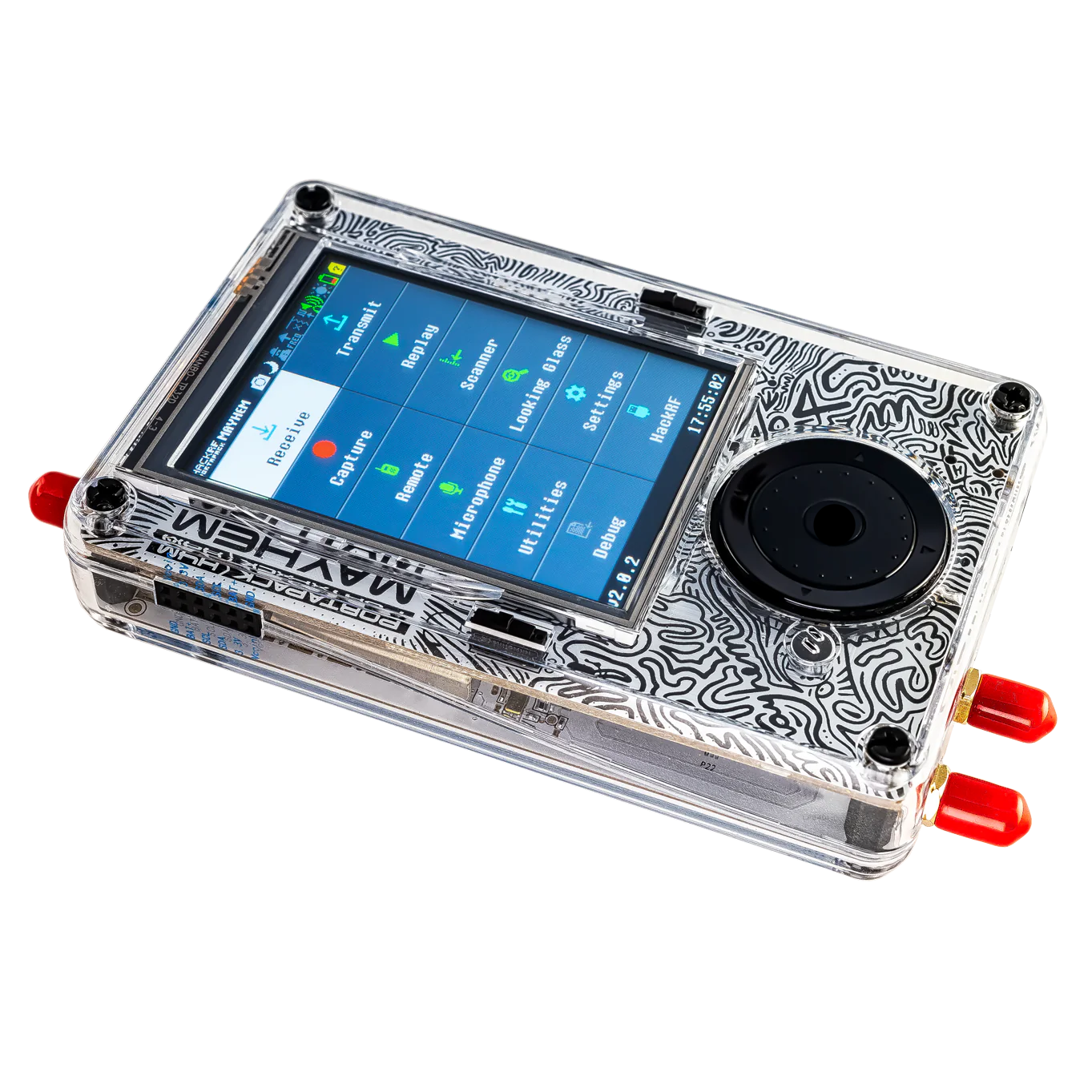

PortaPack H4M + HackRF All-in-one
Introduction
The PortaPack H4M is a stand-alone, all-in-one portable SDR device based on the HackRF framework. The pre-flashed MAYHEM firmware provides vital out-of-the-box functionality for pentesters: Receive / Transmit / Replay / Scan, with dozens of baked in high-level functions: GPS-Spoofing, Jamming, Key-Fob tools, ADS-B/AIS, Bluetooth, and much, much more.
This all-in-one device includes the HackRF + PortaPack in a fully-assembled, rugged injection molded ABS case - no extra hardware, cables, modification or soldering required.
While the HackRF One redefined the pentest/hacker community as a completely affordable, hugely capable, open-source SDR device - it required an external computer, software and advanced knowledge to use. The H4M gives you the power of the HackRF - it's still usable directly - but also the flexibility of a compact, rugged device that requires no external devices.

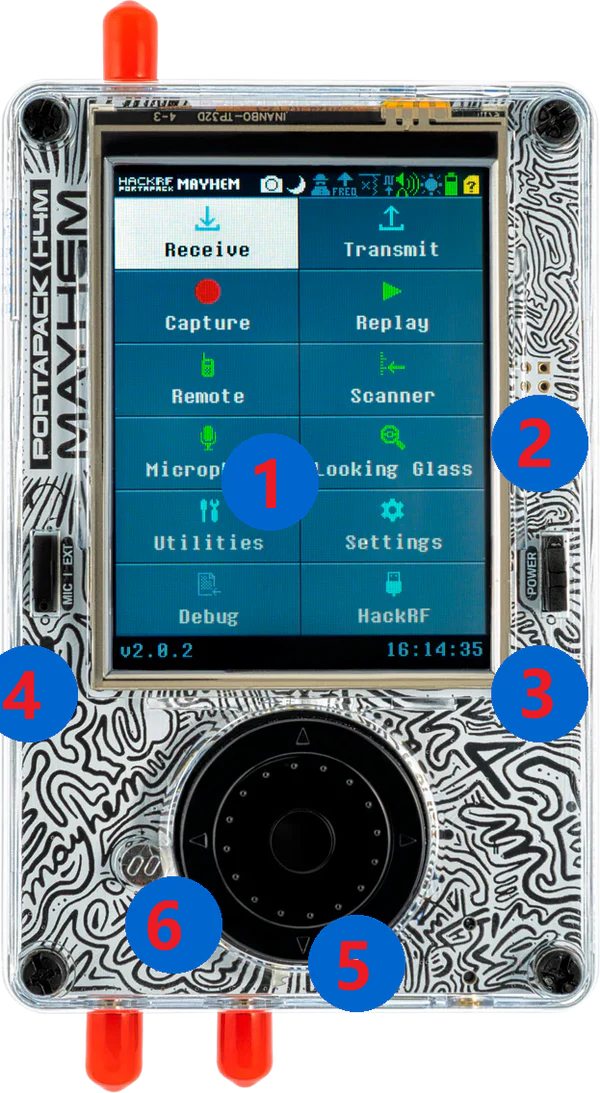

The H4M Advantages
The PortaPack H4M is the first truly integrated, all-in-one PortaPack.
Previous versions had usability, power and quality issues. The new H4M architecture has several new features and advantages. Likewise, it uses the latest revision of HackRF hardware and firmware, the Rev 10.
1. Matte Screen
The improved matte-finished, high-visibility screen is legible even in outdoor environments.
2. GPIO Ports
The GPIO port addition opens the door to add-on accessories, shields and sensors.
3. Redesigned Power System
A completely redesigned power system brings:
- Unified Power On/Off Switch
- New Advanced battery management architecture
- Fast Charging via USB-C
- Zero power-leaks or battery drain
4. Internal / External Mic + Speaker Toggle
Integrated sliding switch allows for rapid toggling between the internal and external microphone / headphones.
5. Redesigned navigation wheel
The redesigned low-profile nagivation wheel + directional buttons allows for faster navigation, without risk of damage to the device while not in use.
6. Integrated Microphone
The new on-board microphone allows the H4M to be used as a full voice transceiver device.
Functionality at a glance
Signal Capture
Easily perform raw signal capture - for instant replay, or for offline demodulation, analysis and modification.
Signal Replay
Oranised and Replay raw signals - directly after capture, or from the SD card or from otther sources.
Signal Detection
Detect and identify the frequency of nearby transmission sources. Useful for reconaissance and identifcation.
Frequency Scanner
Constantly scan a configurable range of frequencies to consecutively or in parallel..
In-built Apps
Dozens of inbuilt applications, such as real-time ADBS scanner, GPS-Simulator, TPMS decoders.. and more
Signal Generator
Generate customised signals - and even spectrum outputs - for device configuration & testing or even fuzzing.
Custom Apps
Open-source hardware and software and an active community - with support for custom applications.
HackRF Mode
Naturally - you still have direct access to the HackRF - with full support for all common SDR tools - GNU Radio etc.

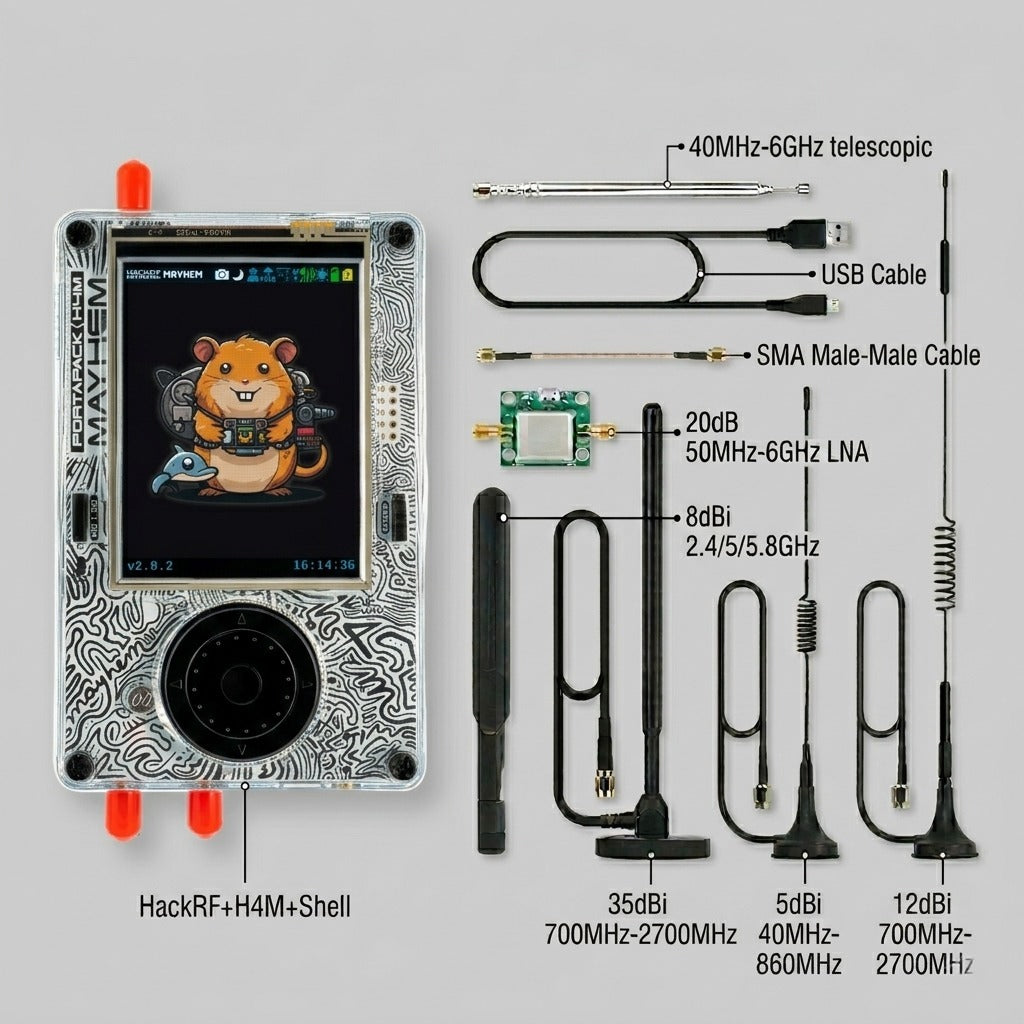

What's included
- 1x PortaPack H4M (HackRF Rev10 + PortaPack H4M)
- 1x MicroUSB Cable
- 1x 20dB 50MHz - 6GHz LNA
- 1x SMA Male/Male Cable
- 1x 2.4/5/5.8GHz Blade Antenna
- 1x GSM/3G/4G Antenna
- 1x 40MHz - 6GHz Telescopic Antenna
- 1x 700MHz - 2700MHz Antenna
Device Specifications
- Screen: 3.2 Inch 240x320 LCD Touch Screen
- Tactile Controls: Arrow Keys, Rotary Wheel, Select Buttons
- Headphone / Mic Socket: 3.5mm headphone / microphone jack
- Internal Coin Battery: Coin battery for RTC & Settings storage
- MicroSD Card Slot: For data import / export
- Case: Transluscent ABS
