$169.00 USD

  • Portapack H2 3.2in TFT Screen SDR Radio，1MHz-6GHz Radio Transceiver with Antennas，2000mhA Long-Life Rechargeable Battery Communication Radio Transceiver ABS Shell

Quantity:

  • Free Worldwide Shipping on Orders Over $39 | 30-Day Returns

Introduction

Basic Functions:The Portapack H2 has comprehensive radio transceiver capabilities,supporting half-duplex mode operation in the 1 MHz to 6 GHz band.The device captures,transmits,and decodes a wide range of radio signals,ensuring efficient and reliable transmission and reception.
Walkie Talkie Function:Through the 3.5mm audio jack,a microphone can be connected for use as a standard push-to-talk (PTT) or voice-activated walkie-talkie.When connected to a speaker, you can also easily observe standard NFM and WFM audio signals.
H2 Expansion Board:The portapack H2 with TF card slot,you can store and playback data after inserting TF card to realize frequency management（not incloud SD card），realizing diversified applications without additional equipment.

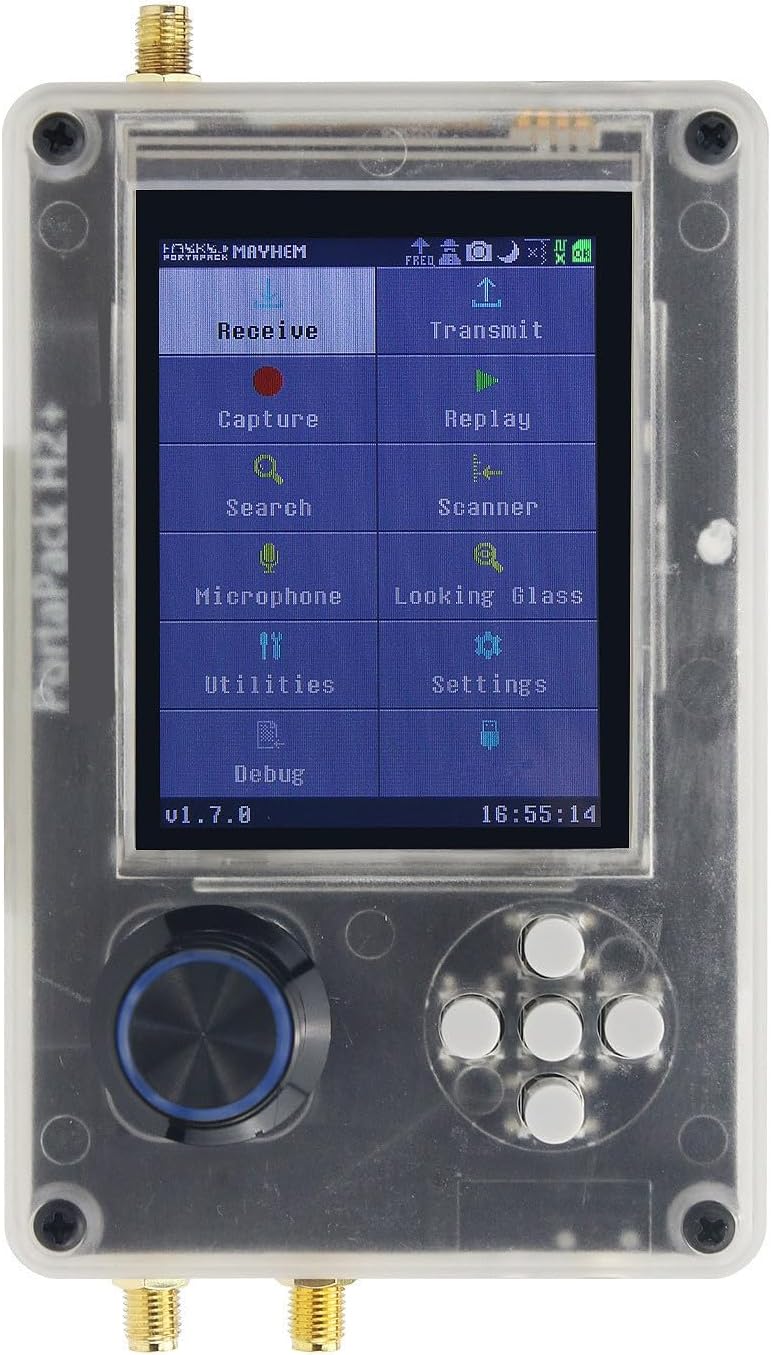

Touch screen and battery life:3.2-inch TFT screen, can directly touch to complete the operation and selection.Contains 2000mAh high-capacity battery,providing longer working time. Support battery charging,long press the center button for 3 seconds to turn on or off,easy to operate and durable.
Lightweight to Take:ABS plastic material is more lightweight, the weight of the device is only 0.46 lb.The ABS material has good impact resistance and abrasion resistance,which provides effective protection for the device.

Functionality at a glance

Signal Capture

Easily perform raw signal capture - for instant replay, or for offline demodulation, analysis and modification.

Signal Replay

Oranised and Replay raw signals - directly after capture, or from the SD card or from otther sources.

Signal Detection

Detect and identify the frequency of nearby transmission sources. Useful for reconaissance and identifcation.

Frequency Scanner

Constantly scan a configurable range of frequencies to consecutively or in parallel..

In-built Apps

Dozens of inbuilt applications, such as real-time ADBS scanner, GPS-Simulator, TPMS decoders.. and more

Signal Generator

Generate customised signals - and even spectrum outputs - for device configuration & testing or even fuzzing.

Custom Apps

Open-source hardware and software and an active community - with support for custom applications.

HackRF Mode

Naturally - you still have direct access to the HackRF - with full support for all common SDR tools - GNU Radio etc.

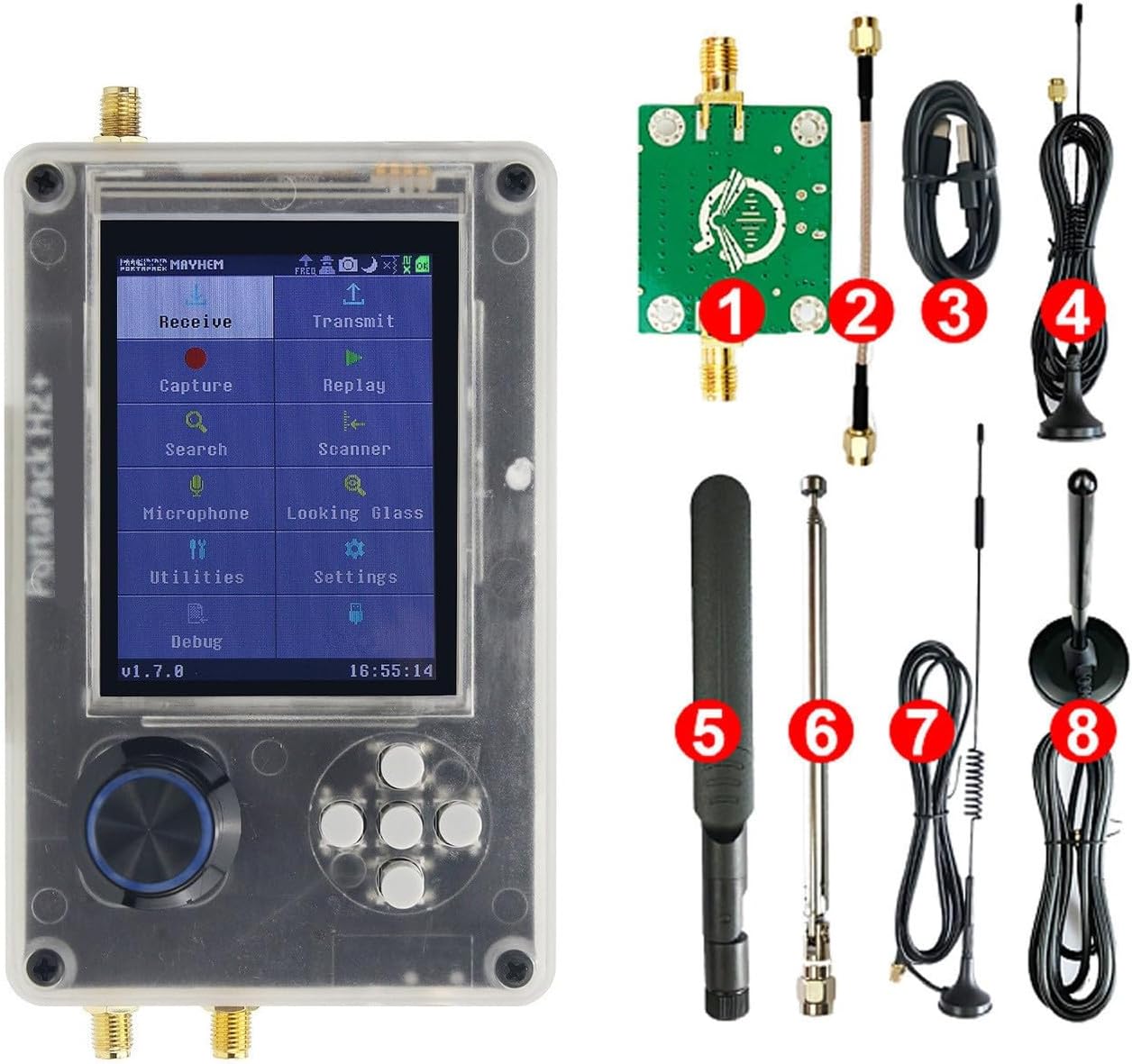

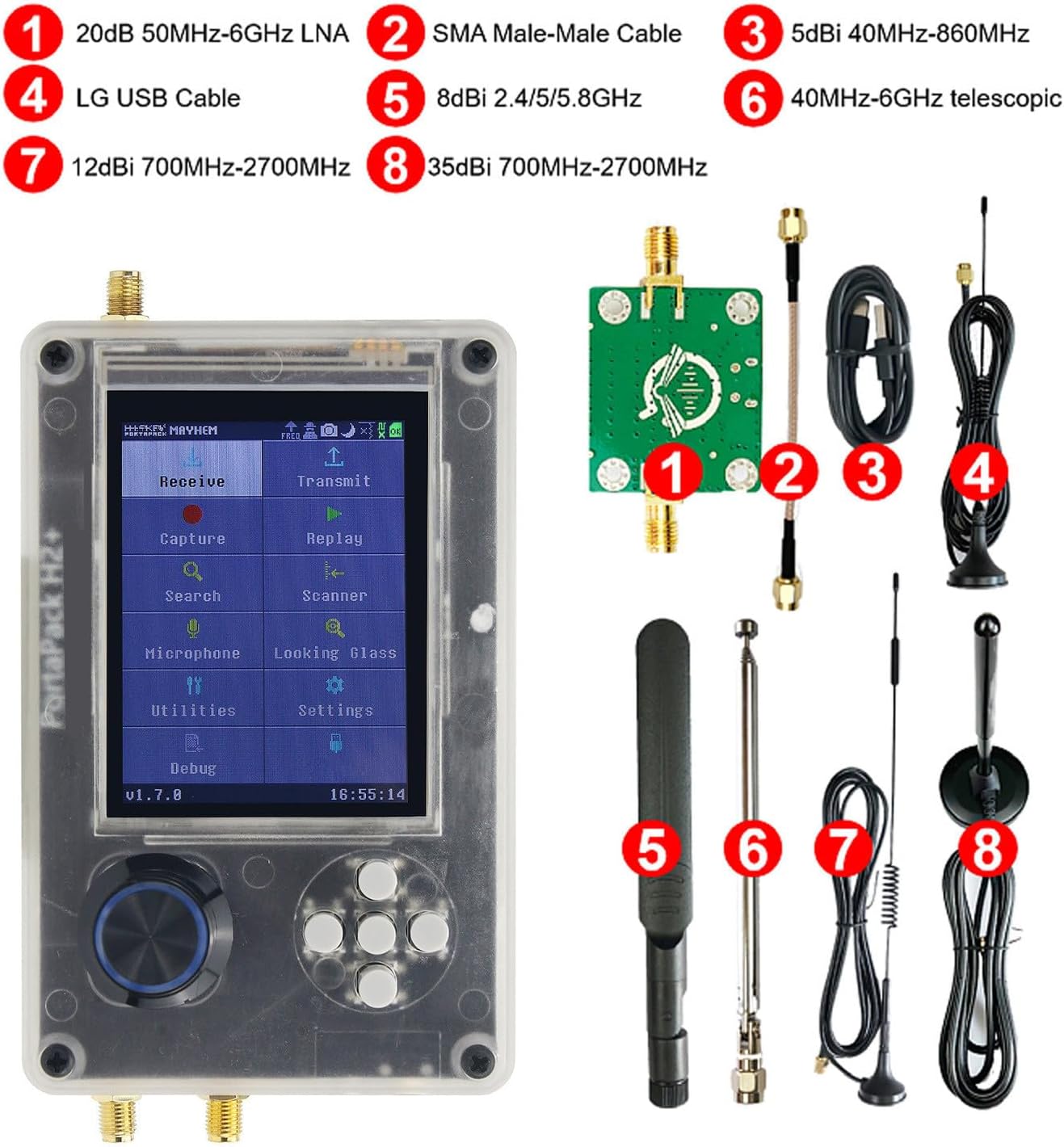

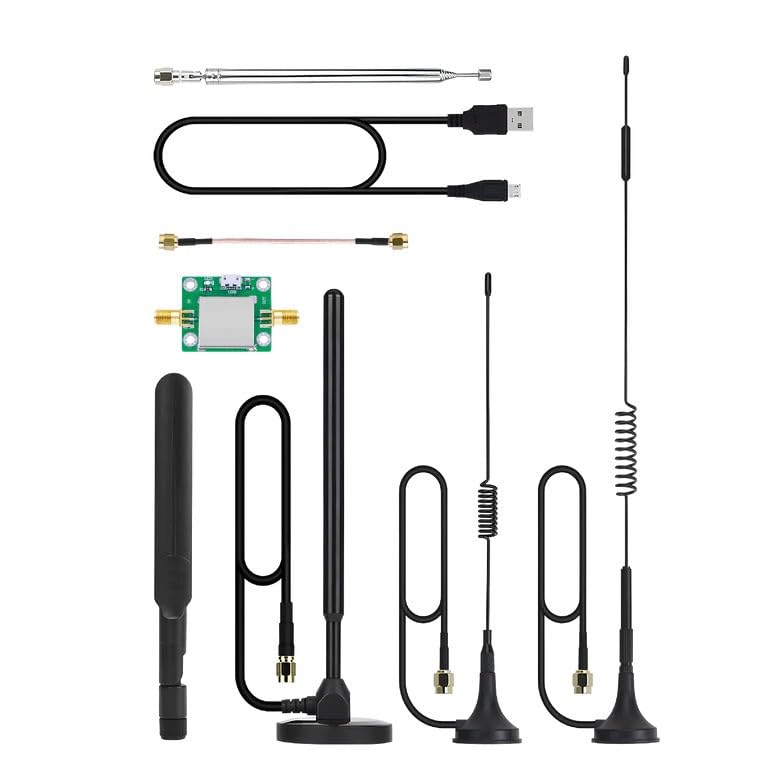

What's included

  • 1x PortaPack H2 (HackRF Rev10 + PortaPack H2)
  • 1x MicroUSB Cable
  • 1x 20dB 50MHz - 6GHz LNA
  • 1x SMA Male/Male Cable
  • 1x 2.4/5/5.8GHz Blade Antenna
  • 1x GSM/3G/4G Antenna
  • 1x 40MHz - 6GHz Telescopic Antenna
  • 1x 700MHz - 2700MHz Antenna

Device Specifications

Model: Portapack H2
Display: 3.2-inch TFT touchscreen (240×320)
Frequency Range: 1MHz – 6GHz
Battery: Built-in 2000mAh rechargeable lithium
Charging: USB interface
Shell Material: Plastic
Audio Jack: 3.5mm (supports mic & headphones)
Size/Weight: Compact, lightweight, portable
