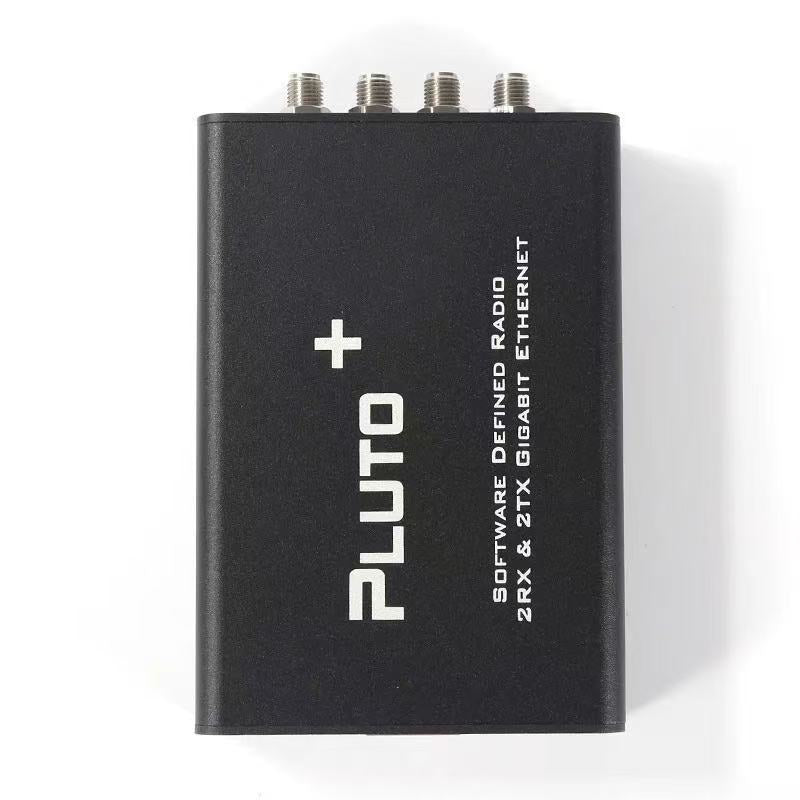

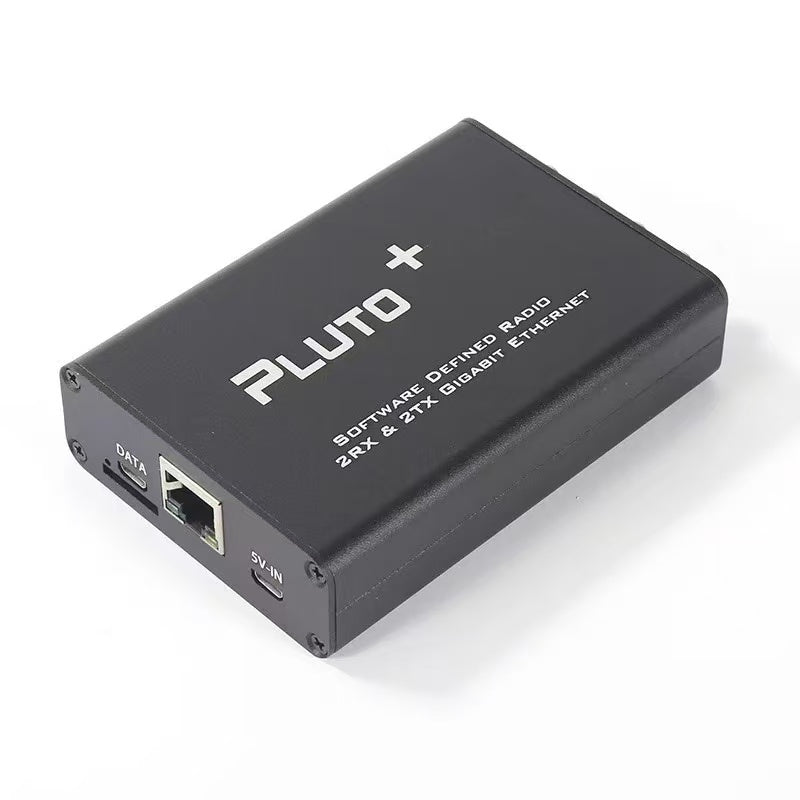

Pluto+AD9363 (Compatible with AD9361)
Pluto+AD9363 (Compatible with AD9361)
Pluto+AD9363 (Compatible with AD9361)

Pluto+AD9363 (Compatible with AD9361)

$199.00 USD

  • The PLUTO+ SDR Transceiver is an open-source 70MHz–6GHz software defined radio platform with dual-channel 2TX/2RX capability, designed for RF learning, wireless communication development, and signal testing. Pre-configured with AD9361-compatible software upgrade and built with Gigabit Ethernet, Micro SD boot, USB OTG, and a Zynq-7010 FPGA, it gives developers and RF enthusiasts a flexible platform for advanced SDR projects.

Quantity:

  • Delivery

    FREE SHIPPING OVER $69 WORLDWIDE | 30 DAYS FREE RETURNS

Introduction

The PLUTO+ SDR Transceiver is a flexible open-source software defined radio platform designed for RF learning, wireless communication development, signal testing, and custom SDR projects. With a wide 70MHz–6GHz frequency range and dual-channel 2TX/2RX capability, it provides a practical platform for both lab use and portable field applications.

  • 70MHz–6GHz wide frequency coverage for flexible SDR exploration and RF testing
  • Dual-channel 2TX/2RX design for advanced transmit and receive workflows
  • AD9361-compatible software upgrade based on the AD9363 RF platform
  • Gigabit Ethernet, Micro SD boot, USB OTG, and Zynq-7010 FPGA for development, expansion, and stable data transfer

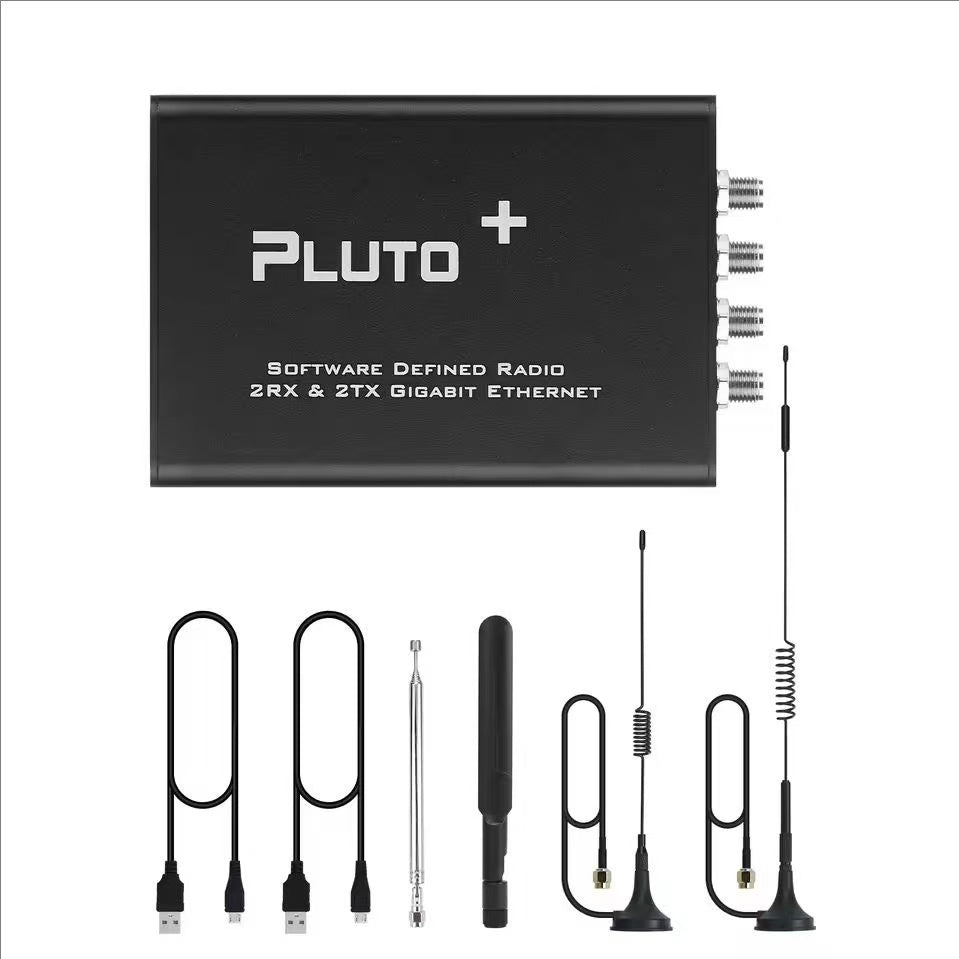

What's included

  • PLUTO+ AD9363 Device (pre-configured to AD9361)
  • USB Cable x1
  • 8dBi 2.4/5/5.8GHz Antenna x1
  • 40MHz-6GHz Telescopic Antenna x1
  • 5dBi 40MHz-860MHz Antenna x1
  • 12dBi 700MHz-2700MHz Antenna x1
  • Portable Bag x1

Device Specifications

  • RF Platform: AD9363 RF transceiver, pre-configured with AD9361-compatible software upgrade
  • RF Frequency Range: 325MHz–3.8GHz standard AD9363 range; extended 70MHz–6GHz range available through AD9361-compatible software configuration
  • Signal Bandwidth: 200kHz–20MHz standard AD9363 bandwidth; up to 56MHz in AD9361-compatible software configuration
  • RF Channels: 2TX / 2RX MIMO
  • FPGA / SoC: Xilinx Zynq-7010
  • Processor: Dual-core ARM Cortex-A9, up to 667MHz
  • Logic Resources: 28K logic cells
  • DDR3 RAM: 512MB
  • Flash Storage: 32MB
  • Extended Storage: Micro SD card interface
  • Network Port: Gigabit Ethernet
  • USB Port: USB 2.0 OTG with USB-JTAG support
  • Power Input: 5V / 2A
  • Reference Clock: 40MHz 0.5ppm TCXO
  • Software Compatibility: MATLAB, Simulink, GNU Radio, ADI ADALM-PLUTO firmware
  • Material: Metal enclosure

Instruction Tips

Please note that all I/O levels are 1.8V.

  • When using the official ADI-PlutoSDR firmware, connect to URST-MIO52.
  • When using Pluto+ firmware with Ethernet support, connect URST-MIO46.
  • When booting from an SD card, connect SD-H to 1.8V.
  • When debugging via JTAG, connect JTAG# to GND.
  • When using an external reference clock input, connect EXCLK to GND.
