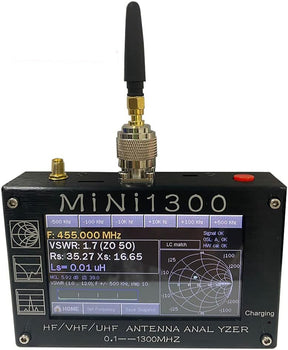

Mini1300 Antenna Analyzer

Introduction

The Upgraded Mini1300 Antenna Analyzer is a professional-grade, portable vector network analyzer designed for engineers, HAM operators, and RF enthusiasts. With continuous frequency coverage from 0.1 to 1300 MHz, it supports HF, VHF, and UHF bands for comprehensive antenna and RF system testing.

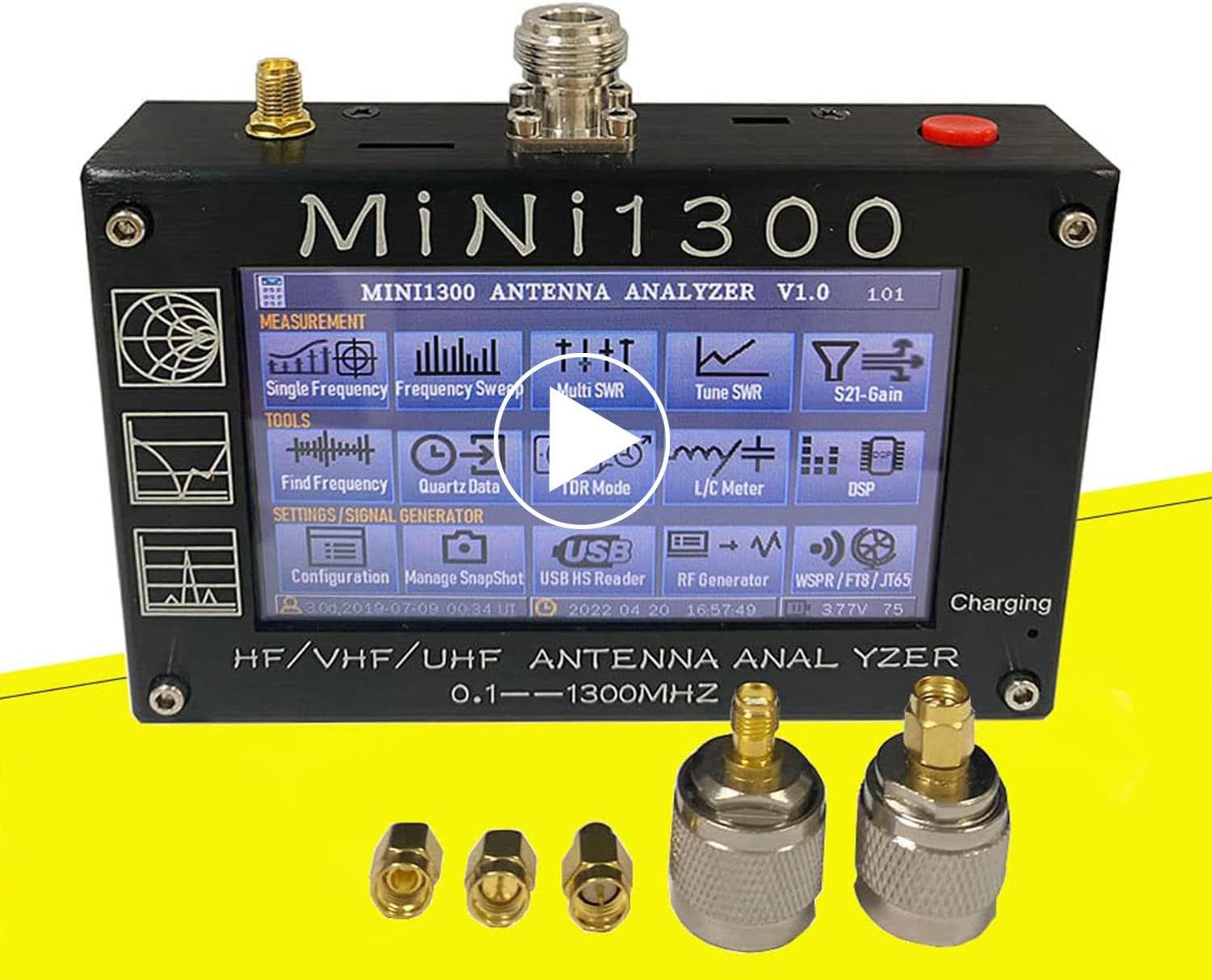

Equipped with SMA Open Short Load Calibration Kits, the Mini1300 provides easy calibration and ensures measurement accuracy. It supports multiple modes including single-point measurement, frequency scanning (sweep), and TDR mode, offering flexibility for various testing scenarios.

The analyzer measures a wide range of parameters including SWR, impedance (Z), resistance (R), reactance (+Jx/-Jx), and return loss. Its SWR measurement range covers 1.0–1999 in single-point mode and 1.0–20.0 in scan mode, providing reliable results for amateur and professional use.

Featuring a 4.3-inch TFT LCD display (480×272), the Mini1300 delivers clear numerical, curve, and simulation diagram displays. Housed in a durable aluminum shell, it ensures better RF performance compared to plastic enclosures.

For power, the Mini1300 supports both USB and built-in lithium-ion battery operation, with an integrated charging circuit, DC-DC booster, and up to 1.5A fast charging. It also supports TF card external storage, making it easy to save and transfer measurement data.

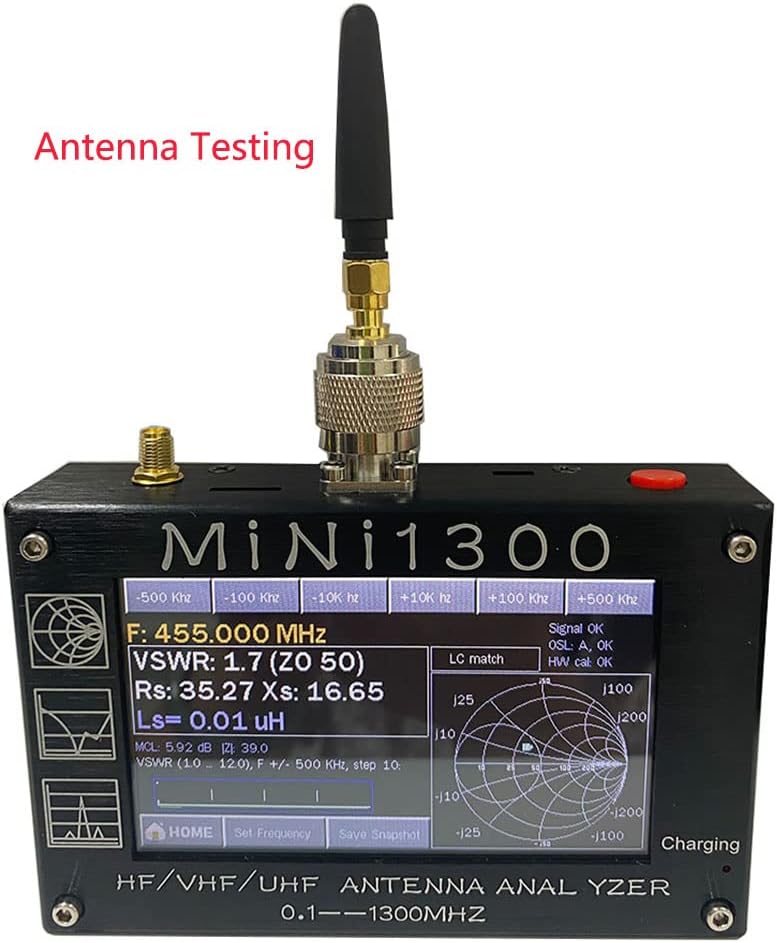

Lightweight, compact, and highly accurate, the Mini1300 is the perfect tool for antenna tuning, SWR testing, RF component analysis, and on-site troubleshooting.
