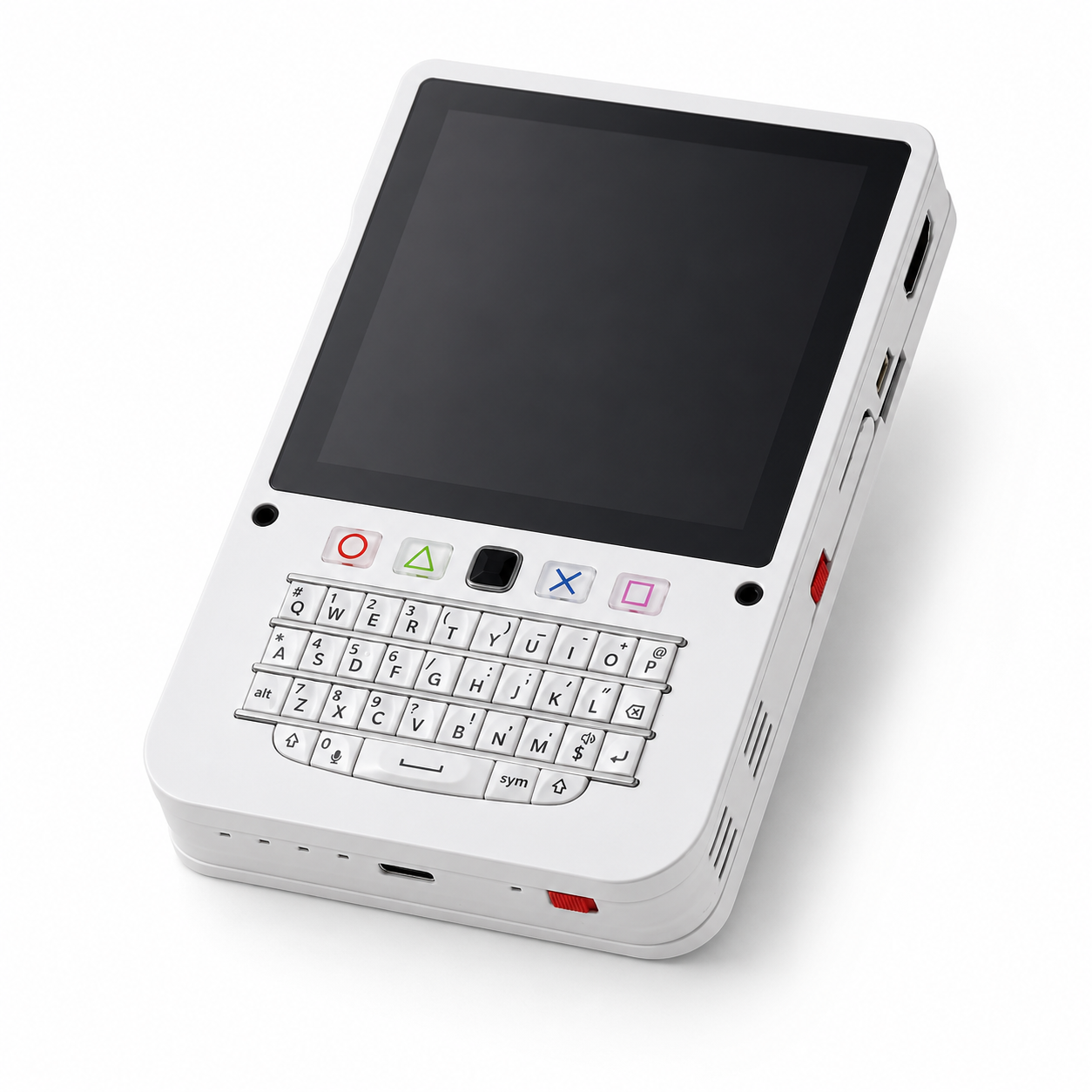

Elevate Your Portable Computing with the Hackberry Pi CM5

Designed for developers, cybersecurity professionals, and hardware enthusiasts, the Hackberry Pi CM5 is more than a handheld—it is a purpose-built Linux cyberdeck that merges raw performance with an iconic, tactile interface. Engineered to push the boundaries of portable computing, this device transforms the Raspberry Pi Compute Module 5 (CM5) into a robust, field-ready workstation.

Whether you are performing on-site network diagnostics, exploring the Linux kernel, or building custom embedded applications, the Hackberry Pi CM5 provides the form factor and expandability you need to take your projects from the lab to the field.

⚠️ Critical Purchase Information

• Barebones Configuration: The CM5 module is NOT included. You will need to source your own Raspberry Pi Compute Module 5.
• CM5 Selection: We strongly recommend using the CM5 Lite (Non-eMMC) version for the easiest OS flashing experience. If you choose an eMMC-based model, please note that you will require an external adapter to flash your operating system.
• Assembly Required: This is a hobbyist-grade kit. Please review the Official Assembly Guidelines before purchasing.

Technical Specifications

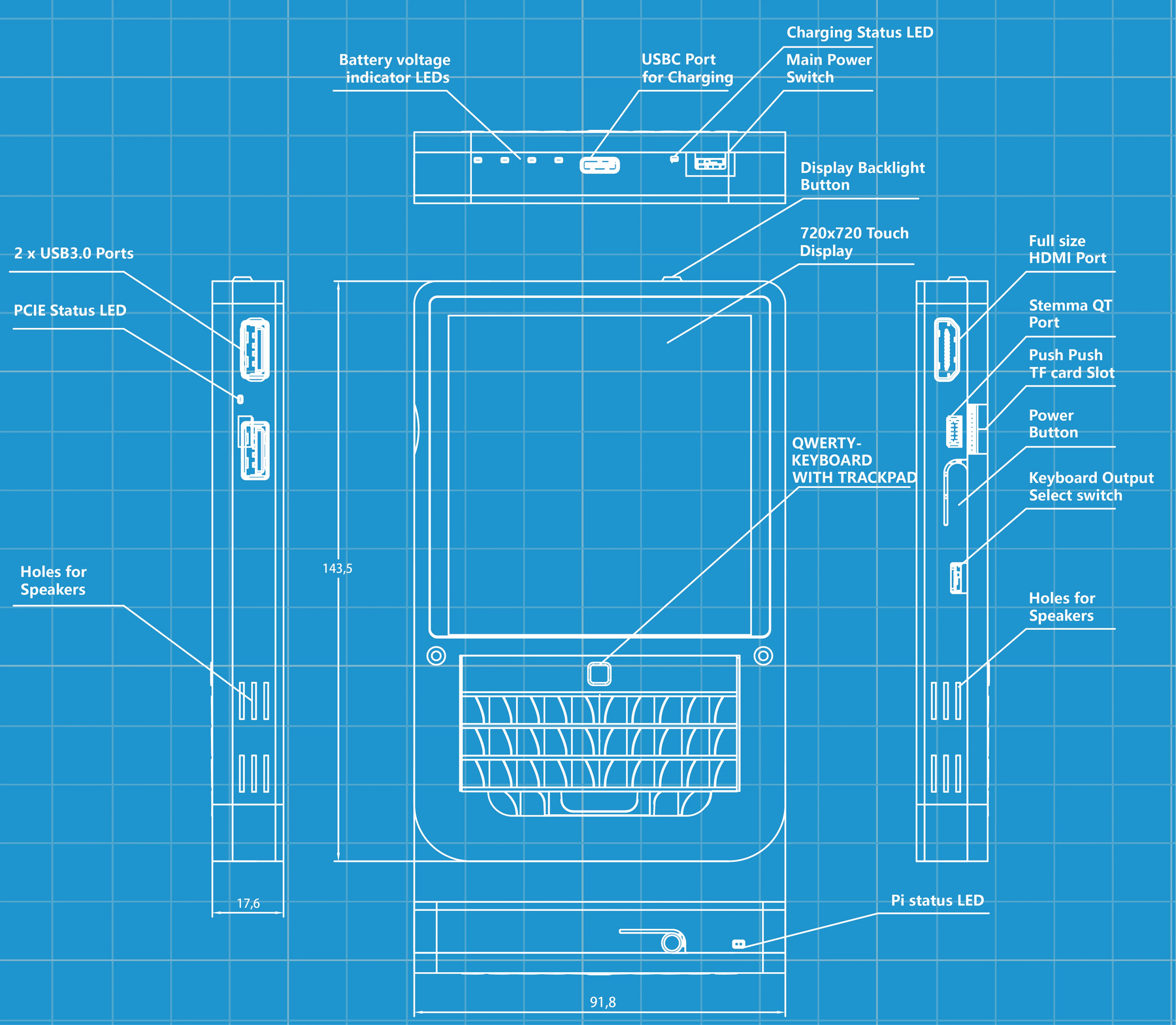

• Dimensions: 143.5mm × 91.8mm × 17.6mm
• Weight: 306g (with CM5, battery, and heatsink)

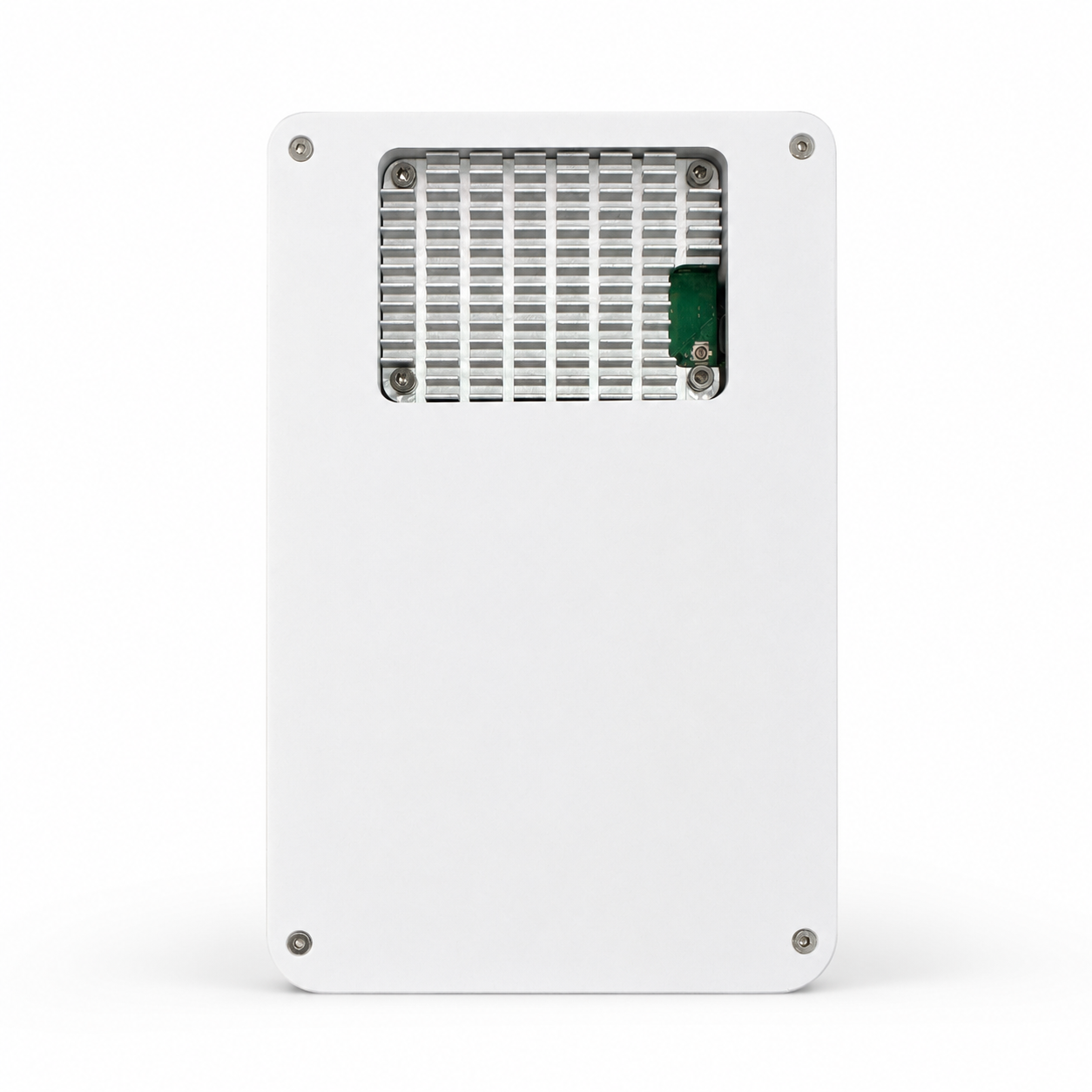

• Enclosure: CNC-Machined Aluminum (Front/Back) + 3D-Printed Middle Frame
• Display: 4" 720x720 High-Resolution Multi-Touch TFT

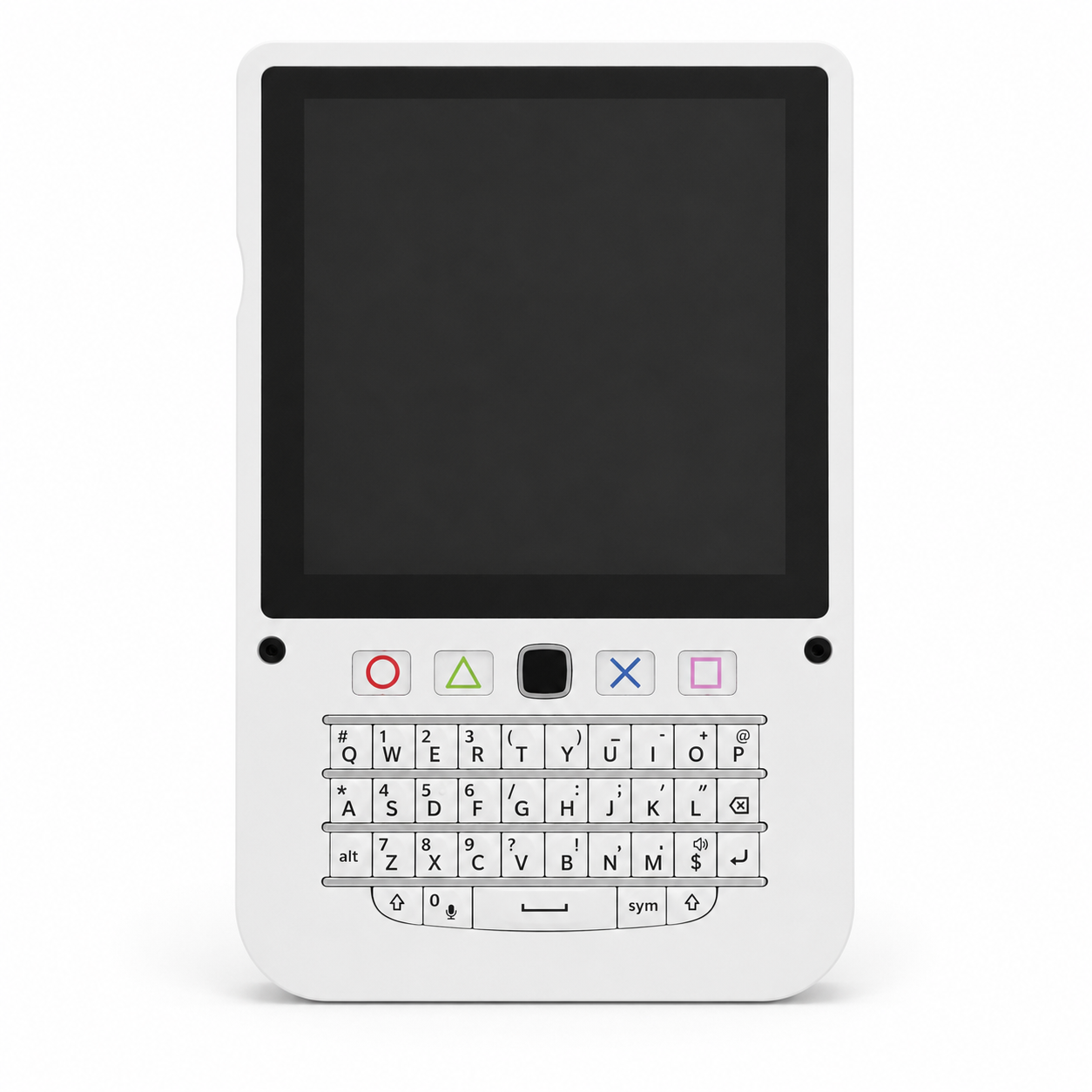

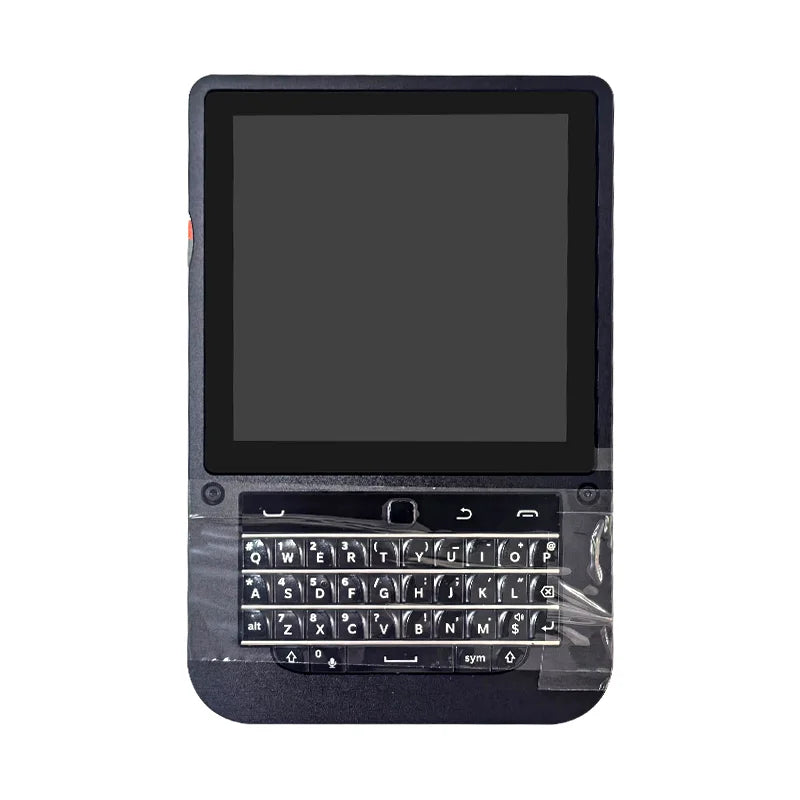

• Keyboard: Integrated BlackBerry-style (Q10/Q20/9900 compatible) + Trackpad
• Storage: 2242 M.2 NVMe Slot (Supports SSDs or AI Accelerators)
• Battery: 5000mAh LiPo (~3–5 hours active use)

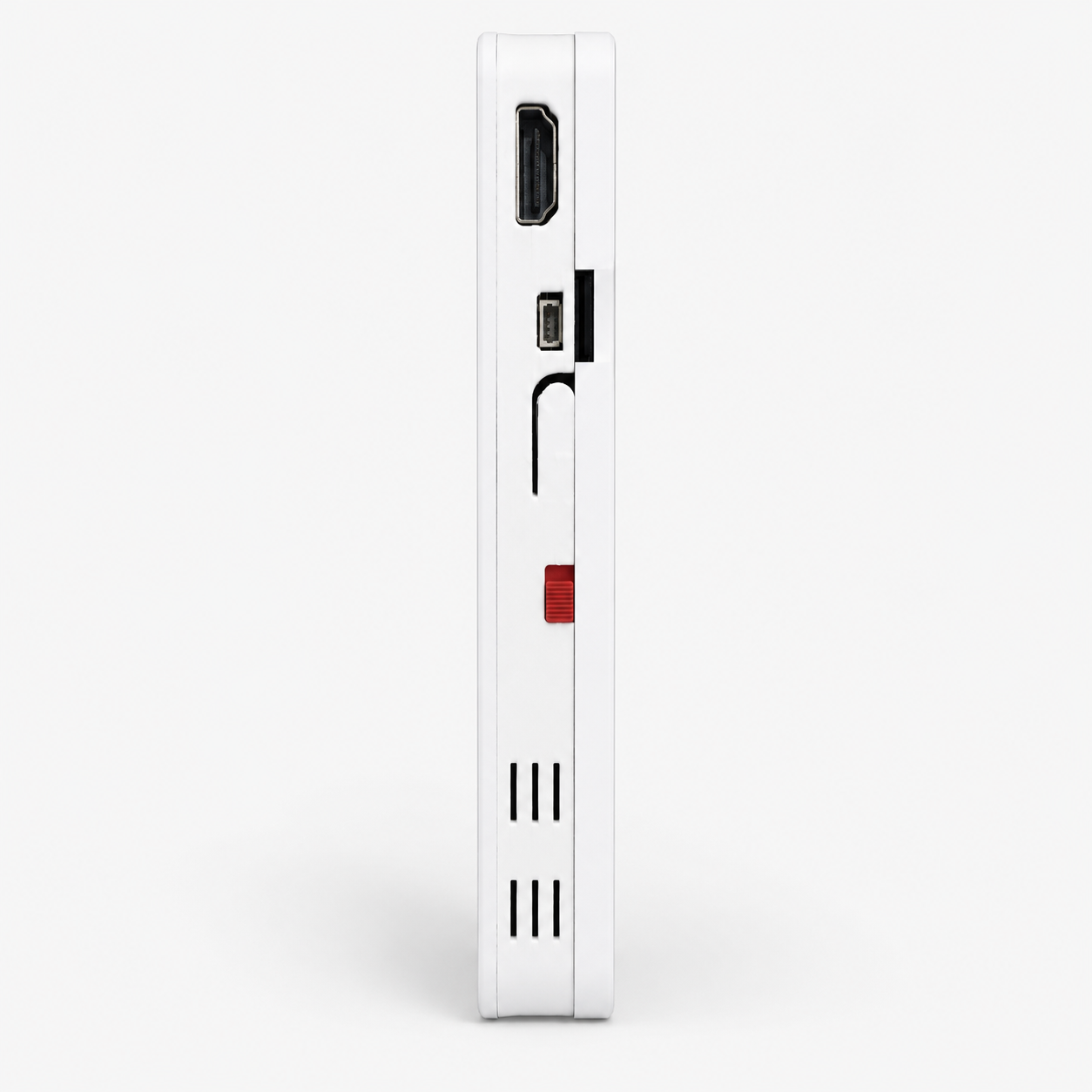

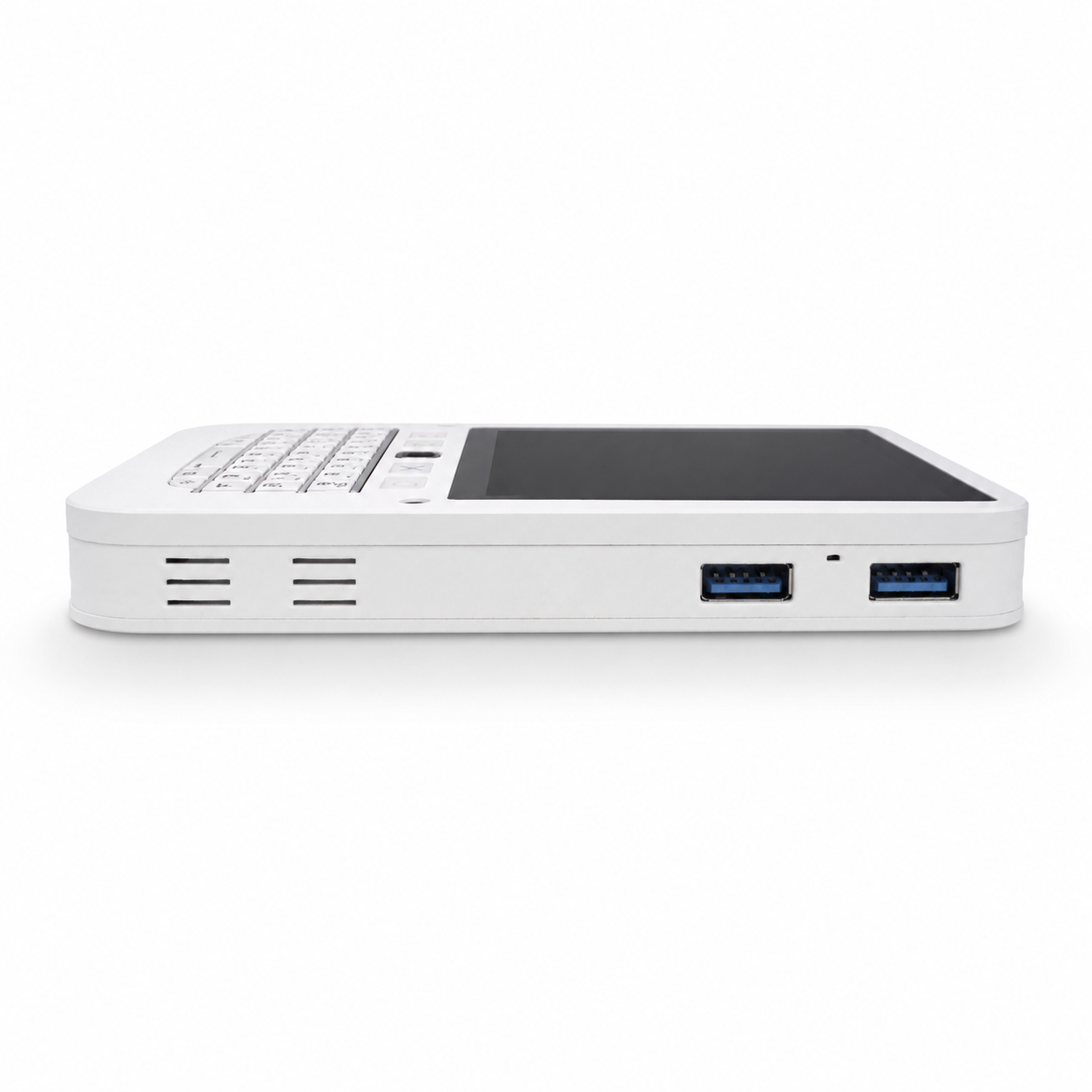

• Connectivity: 2x USB 3.0, Full-sized HDMI, Stemma QT (I²C) Port
• Audio: Integrated Dual Bluetooth Speakers

Key Features

• Universal OS Support: Compatible with Raspberry Pi OS, Kali Linux, Ubuntu, LineageOS, Manjaro, and more.
• Raspberry Pi CM5 Support : Quad-core Cortex-A76 ARMv8 64-bit SoC @ 2.4GHz
• Fully Programmable Interface: Remap your workflow using VIAL software for complete keyboard customization.
• HDMI: Full-sized HDMI port—no adapters needed!
• Real-time Monitoring: Integrated I²C voltage monitoring chip for precise battery health tracking.

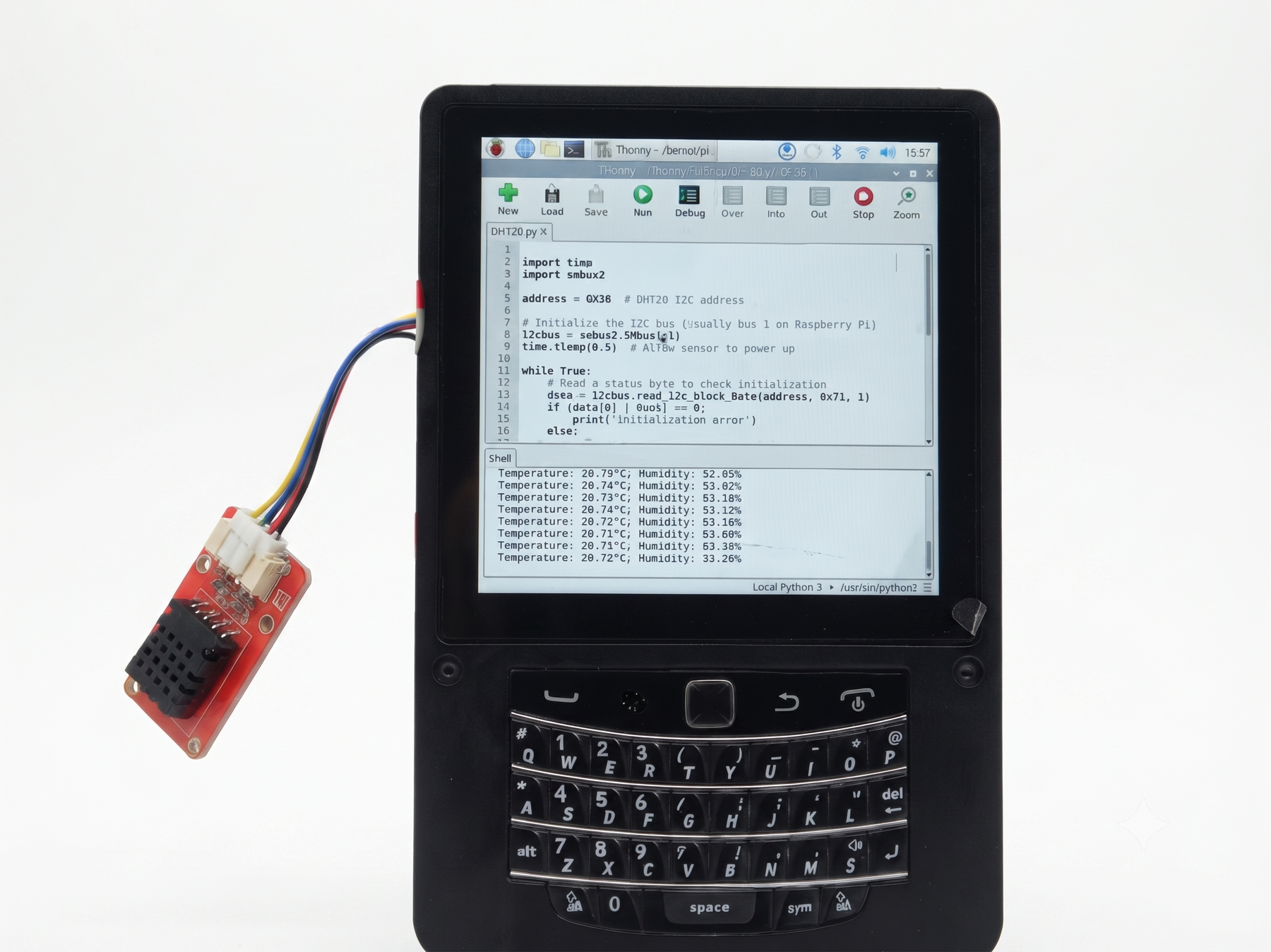

• Expandable Ecosystem: Built-in Stemma QT port allows for rapid integration of external sensors and modules.
• Modular Design: Optimized for easy access, including a built-in RTC battery slot and internal magnet for MagSafe-compatible power bank mounting.
